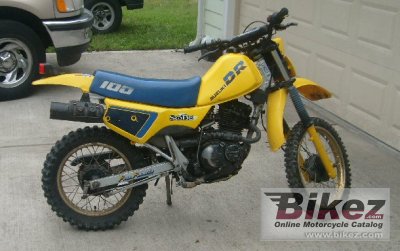

Suzuki DR 100 19871987 Suzuki DR 100 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Suzuki DR 100 |
| Model year | 1987 |
| Category | Enduro / offroad |
| Rating | 3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 99.0 ccm (6.04 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Top speed | 83.0 km/h (51.6 mph) |
| Max RPM | 8000 |
| Compression | 10.0:1 |
| Bore x stroke | 51.0 x 48.8 mm (2.0 x 1.9 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. MIKUNI VM20SS, single |
| Fuel control | Overhead Cams (OHC) |
| Ignition | SUZUKI ´PEI´ |
| Lubrication system | Wet Sump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-plate type |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 28.0° |
| Trail | 86 mm (3.4 inches) |
| Front suspension | Teloscopic, coil spring, oil dampened |
| Rear suspension | Full-floating suspension system, spring 5-way adjustable |
| Front tire | 3.00-17 |
| Rear tire | 4.00-15 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Seat height | 740 mm (29.1 inches) If adjustable, lowest setting. |
| Overall height | 1065 mm (41.9 inches) |
| Overall length | 1790 mm (70.5 inches) |
| Overall width | 785 mm (30.9 inches) |
| Ground clearance | 225 mm (8.9 inches) |
| Wheelbase | 1215 mm (47.8 inches) |
| Fuel capacity | 5.60 litres (1.48 US gallons) |
| Reserve fuel capacity | 1.00 litres (0.26 US gallons) |
| Other specifications | |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
