| Sherco's profilation of this bike |
| The new tubular steel frame embraces two of the most important developments of the new Sherco. The positions of the fuel tank and the air filter have been exchanged. With the relocation of these two major components you get a new weight distribution closer to the nucleus. |
| General information |
|---|

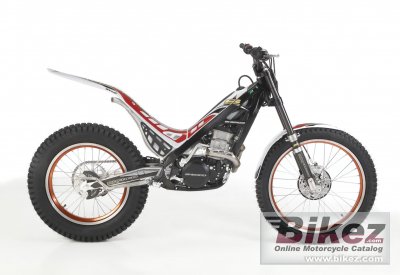

| Model: | Sherco ST 3.2 F | | Year: | 2010 | | Category: | Trial | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 317.00 ccm (19.34 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Bore x stroke: | 82.0 x 60.0 mm (3.2 x 2.4 inches) | | Valves per cylinder: | 4 | | Fuel system: | Carburettor. 28mm | | Fuel control: | SOHC | | Ignition: | Dual Map Leonelli progressive electronic ignition with a balanced magnetic flywheel | | Lubrication system: | Wet sump pressure lubrication | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Clutch: | Wet, multidisc | | Exhaust system: | Steel header pipe with an integrated aluminum muffler | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular section Chrome-moly | | Front suspension: | Ceriani 38 mm. dia hydraulic telescope fork, | | Front suspension travel: | 185 mm (7.3 inches) | | Rear suspension: | Progressive link system with single Olle adjustable shock absorber, | | Rear suspension travel: | 175 mm (6.9 inches) | | Front brakes: | Single disc | | Front brakes diameter: | 185 mm (7.3 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 145 mm (5.7 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 70.0 kg (154.3 pounds) | | Seat height: | 645 mm (25.4 inches) If adjustable, lowest setting. | | Ground clearance: | 305 mm (12.0 inches) | | Wheelbase: | 1,322 mm (52.0 inches) | | Fuel capacity: | 2.90 litres (0.77 gallons) | | Other specifications |
|---|
| Starter: | Kick | | Color options: | Black/blue | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 10 Sherco ST 3.2 F discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
