| General information |
|---|

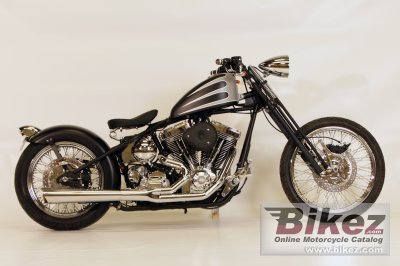

| Model: | Saxon Henchman |
| Year: | 2011 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 1573.00 ccm (95.98 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | S and S engine |
| Compression: | 10.1:1 |
| Bore x stroke: | 92.1 x 117.5 mm (3.6 x 4.6 inches) |
| Fuel system: | Carburettor. Mikuni HSR 42 |
| Fuel control: | OHV |
| Cooling system: | Air |
Transmission type,
final drive: | Chain |
| Driveline: | Chain primary drive. Belt final drive. Rivera Primo, 6 speed left side drive |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 43.0° |
| Front suspension: | Telescopic fork, optional springer |
| Front tyre dimensions: | 2.15-21 |
| Rear tyre dimensions: | 200-18 |
| Front brakes: | Single disc. Bremo 4-piston calipers |
| Rear brakes: | Single disc. Bremo 2 piston calipers |
| Physical measures and capacities |
|---|
| Dry weight: | 232.0 kg (511.5 pounds) |
| Seat height: | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall length: | 2,340 mm (92.1 inches) |
| Wheelbase: | 1,700 mm (66.9 inches) |
| Fuel capacity: | 12.30 litres (3.25 gallons) |
| Oil capacity: | 2.80 litres (0.18 quarts) |
| Other specifications |
|---|
| Starter: | Electric |
| Instruments: | Digital |
| Factory warranty: | 2 years unlimited mileage (Europe) |
| Color options: | Custom colors |
