| General information |
|---|

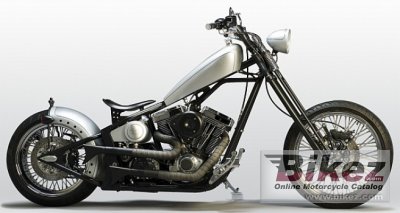

| Model: | Saxon Crown |
| Year: | 2012 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 1566.00 ccm (95.56 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | 45 degree V-twin |
| Compression: | 10.1:1 |
| Bore x stroke: | 94.0 x 116.8 mm (3.7 x 4.6 inches) |
| Fuel system: | Carburettor. Mikuni HSR42 |
| Fuel control: | OHV |
| Ignition: | CDI |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Driveline: | Chain primary and final. 6-Speed Left Side transmisssion. |
| Fuel consumption: | 6.70 litres/100 km (14.9 km/l or 35.11 mpg) |
| Greenhouse gases: | 155.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Stretch 6 In Downtube - 2 In Backbone |
| Rake (fork angle): | 34.0° |
| Front suspension: | Springer 4´´ over |
| Rear suspension: | Hidden Progressive Shocks |
| Front tyre dimensions: | 120/70-21 |
| Rear tyre dimensions: | 240-18 |
| Front brakes: | Single disc. Bremo 4-piston calipers |
| Rear brakes: | Single disc. Bremo 2- piston calipers |
| Wheels: | 80 Spoke Wheels |
| Physical measures and capacities |
|---|
| Dry weight: | 275.0 kg (606.3 pounds) |
| Seat height: | 635 mm (25.0 inches) If adjustable, lowest setting. |
| Overall length: | 2,490 mm (98.0 inches) |
| Wheelbase: | 188 mm (7.4 inches) |
| Fuel capacity: | 12.50 litres (3.30 gallons) |
| Oil capacity: | 3.30 litres (0.22 quarts) |
| Other specifications |
|---|
| Starter: | Electric |
| Instruments: | Digital speedometer with integrated Tach |
| Electrical: | 550 CCA battery |
| Seat: | Solo seat |
| Factory warranty: | 24 months factory warranty |
