| General information |
|---|

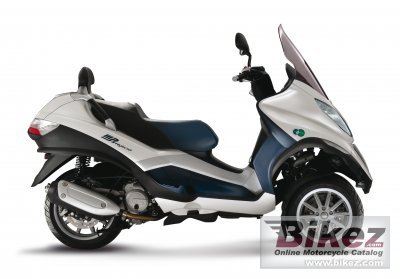

| Model: | Piaggio MP3 125 Hybrid |
| Year: | 2011 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Engine details: | Hybrid brushless electric 2.6 kW motor and Lithium-ion battery |
| Power: | 11.00 HP (8.0 kW)) @ 8500 RPM |
| Torque: | 16.00 Nm (1.6 kgf-m or 11.8 ft.lbs) @ 3500 RPM |
| Top speed: | 160.0 km/h (99.4 mph) |
| Bore x stroke: | 72.0 x 60.0 mm (2.8 x 2.4 inches) |
| Fuel system: | Carburettor |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Fuel consumption: | 1.67 litres/100 km (59.9 km/l or 140.85 mpg) |
| Greenhouse gases: | 38.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Emission details: | Euro 3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel tube |
| Front suspension: | Articulated quadrilateral consisting of four aluminium arms sustaining two steering tubes, and pull rod suspension geometry with offset wheel axle. |
| Rear suspension: | Two dual action hydraulic shock absorbers with adjustable spring preload. |
| Front tyre dimensions: | 120/70-12 |
| Rear tyre dimensions: | 140/60-14 |
| Front brakes: | Double disc. Two front wheels, one disk per wheel. |
| Front brakes diameter: | 240 mm (9.4 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Overall height: | 1,490 mm (58.7 inches) |
| Overall length: | 2,140 mm (84.3 inches) |
| Overall width: | 760 mm (29.9 inches) |
| Wheelbase: | 1,490 mm (58.7 inches) |
| Fuel capacity: | 12.00 litres (3.17 gallons) |
| Reserve fuel capacity: | 1.80 litres (0.48 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | White |
| Comments: | Electric motor: Synchronous brushless permanent magnet motor.
Power supply voltage: Three-phase alternating current. Electric motor control: Digitally controlled inverter. |
