Pagsta XP 250 2010


2010 Pagsta XP 250 specifications, pictures, reviews and rating

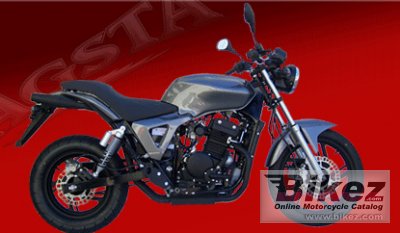

2010 Pagsta XP 250
Picture credits - Pagsta. Click to submit more pictures.

2010 Pagsta XP 250
Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes


Pagsta's profilation of this bike
The evolution of Pagsta motorcycles is conceptualised in the new water cooled XP250. Its dual front wave rotor disc brakes with twin piston callipers and rear wave rotor disc brake combine with its progressive rear suspension to create a harmonic balance of performance, ride, and safety.

General information
Model:Pagsta XP 250
Year:2010
Category:Sport
Rating:58.2 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:234.00 ccm (14.28 cubic inches)
Engine type:Twin, four-stroke
Compression:10.2:1
Bore x stroke:53.0 x 53.0 mm (2.1 x 2.1 inches)
Fuel system:Carburettor
Ignition:CDI
Cooling system:Liquid
Gearbox:5-speed
Transmission type,
final drive:
Chain
Exhaust system:Twin under tail exhaust
Chassis, suspension, brakes and wheels
Front suspension:Spring, hydraulic complex damping.
Rear suspension:Spring, progressive pro ride
Front tyre:90/90-18
Rear tyre:130/90-15
Front brakes:Double disc
Front brakes diameter:260 mm (10.2 inches)
Rear brakes:Single disc
Rear brakes diameter:240 mm (9.4 inches)
Physical measures and capacities
Dry weight:165.0 kg (363.8 pounds)
Seat height:790 mm (31.1 inches) If adjustable, lowest setting.
Overall height:1,140 mm (44.9 inches)
Overall length:2,135 mm (84.1 inches)
Overall width:825 mm (32.5 inches)
Fuel capacity:18.00 litres (4.76 gallons)
Reserve fuel capacity:2.50 litres (0.66 gallons)
Other specifications
Color options:Blue, black
Starter:Electric
Comments:Sold in Australia.
Further information
Insurance costsGet estimated US insurance cost with a quote from Allstate Motorcycle Insurance.
Parts finder Chaparral provides online schematics & OEM parts for the US. Motorcycle Superstore provides an easy-to-use parts finder. Ships to the US, Canada, UK and Australia. MotoSport.com ships motorcycle parts and accessories to most countries. Sixity.com has low prices and free shipping on ATV and motorcycle parts to the US. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questionsJoin the 10 Pagsta XP 250 discussion group or the general Pagsta discussion group.
Loans, tests, etcSearch the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs.

Sell or buy used bikes?

Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2010 Pagsta XP 250 or advertise any other MC for sale. You can list all 2010 Pagsta XP 250 available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.


Rating sample for this Pagsta bike
Design and look for the 2010 Pagsta XP 250:

Vote scale
bar (65.9 out of 100)

Click here for complete rating. You can also compare bikes.
