| General information |
|---|

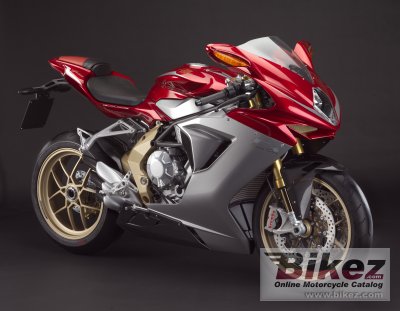

| Model: | MV Agusta F3 Serie Oro |
| Year: | 2012 |
| Category: | Sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 675.00 ccm (41.19 cubic inches) |
| Engine type: | In-line three, four-stroke |
| Power: | 126.00 HP (92.0 kW)) @ 1440 RPM |
| Torque: | 71.00 Nm (7.2 kgf-m or 52.4 ft.lbs) @ 10600 RPM |
| Top speed: | 262.0 km/h (162.8 mph) |
| Compression: | 13.0:1 |
| Bore x stroke: | 79.0 x 45.9 mm (3.1 x 1.8 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection |
| Fuel control: | DOHC |
| Ignition: | Digital CDI |
| Lubrication system: | Wet sump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, multiple discs, cable operated. Polished clutch cover. |
| Emission details: | Euro 3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | ALS Steel Tubular Trellis |
| Front suspension: | Marzocchi UPD Telescopic fork |
| Front suspension travel: | 125 mm (4.9 inches) |
| Rear suspension: | Sachs adjustable monoshock |
| Rear suspension travel: | 123 mm (4.8 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 180/55-ZR17 |
| Front brakes: | Double disc. Brembo brake rotors controlled by monobloc calipers |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Brembo brake rotors controlled by monobloc calipers |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Wheels: | Aluminium alloy |
| Physical measures and capacities |
|---|
| Dry weight: | 172.0 kg (379.2 pounds) |
| Power/weight ratio: | 0.7326 HP/kg |
| Seat height: | 812 mm (32.0 inches) If adjustable, lowest setting. |
| Overall length: | 2,060 mm (81.1 inches) |
| Overall width: | 725 mm (28.5 inches) |
| Ground clearance: | 115 mm (4.5 inches) |
| Wheelbase: | 1,380 mm (54.3 inches) |
| Fuel capacity: | 16.00 litres (4.23 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Seat: | 2-person seat, hand stitched, leather and alcantara |
| Color options: | Red/silver/gold |
| Comments: | Limited edition of 200 bikes. |
