| General moped information |
|---|

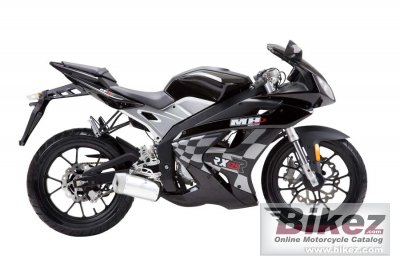

| Model: | Motorhispania RX 50R |
| Year: | 2012 |
| Category: | Sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.70 ccm (3.03 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Engine details: | Minarelli engine |
| Bore x stroke: | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
| Fuel system: | Carburettor. Dell Orto PHBN 16 |
| Ignition: | CDI |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multidisk in oild coating |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Deltabox double steel beam |
| Front suspension: | Paioli inverted hydraulic fork 41 mm advance axle |
| Rear suspension: | Olle monoshock |
| Rear suspension travel: | 130 mm (5.1 inches) |
| Front tyre dimensions: | 100/80-17 |
| Rear tyre dimensions: | 130/70-17 |
| Front brakes: | Single disc. Ventilated disk |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc. Ventilated disk |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Wheels: | Black rims |
| Physical measures and capacities |
|---|
| Dry weight: | 120.0 kg (264.6 pounds) |
| Weight incl. oil, gas, etc: | 135.0 kg (297.6 pounds) |
| Seat height: | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Overall length: | 1,970 mm (77.6 inches) |
| Overall width: | 680 mm (26.8 inches) |
| Wheelbase: | 1,330 mm (52.4 inches) |
| Fuel capacity: | 12.50 litres (3.30 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Instruments: | Digital/analogue |
| Factory warranty: | 24 months and unlimited mileage |
| Color options: | Blue, red, black |
| Comments: | Motorhispania, also called MH Motorcycles, is a Spanish brand. |
