| General information |
|---|

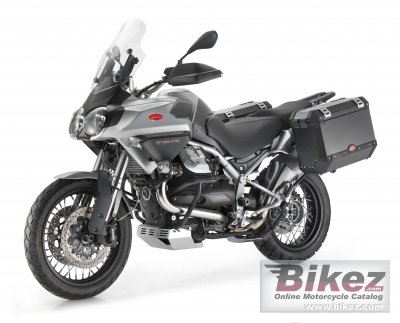

| Model: | Moto Guzzi Stelvio 1200cc NTX 4V |
| Year: | 2010 |
| Category: | Enduro / offroad |
| Rating: | 63.4 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1151.00 ccm (70.23 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 103.26 HP (75.4 kW)) @ 7500 RPM |
| Torque: | 113.00 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 5800 RPM |
| Compression: | 11.0:1 |
| Bore x stroke: | 95.0 x 81.2 mm (3.7 x 3.2 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Multipoint sequential electronic injection, Magneti Marelli IAW5A phased, alfa-n system; two Ø 50mm throttle bodies, Weber IWP 189 injectors, lambda probe. |
| Cooling system: | Oil & air |
| Gearbox: | 6-speed |
| Clutch: | Single-disc with integrated anti-vibration buffer |
| Exhaust system: | Stainless steel two-into-one 3-way catalysed with Lambda probe. Euro 3. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | High tensile steel tubular twin cradle |
| Rake (fork angle): | 27.0° |
| Trail: | 125 mm (4.9 inches) |
| Front suspension: | Upside down Ø 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers. |
| Front suspension travel: | 170 mm (6.7 inches) |
| Rear suspension: | Single arm with rising-rate leverage, single shock absorber with hydraulic rebound damping adjustment and knob spring preloading set screw. |
| Rear suspension travel: | 155 mm (6.1 inches) |
| Front tyre dimensions: | 110/90-R19 |
| Rear tyre dimensions: | 180/55-R17 |
| Front brakes: | Double disc. ABS. Stainless steel wave discs, radial calipers with 4 opposed pistons. |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. ABS. Single fixed stainless steel disc, floating caliper with 2 parallel pistons. |
| Rear brakes diameter: | 282 mm (11.1 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 214.0 kg (471.8 pounds) |
| Weight incl. oil, gas, etc: | 251.0 kg (553.4 pounds) |
| Power/weight ratio: | 0.4825 HP/kg |
| Seat height: | 840 mm (33.1 inches) If adjustable, lowest setting. |
| Overall height: | 1,475 mm (58.1 inches) |
| Overall length: | 2,250 mm (88.6 inches) |
| Ground clearance: | 210 mm (8.3 inches) |
| Wheelbase: | 1,535 mm (60.4 inches) |
| Fuel capacity: | 18.00 litres (4.76 gallons) |
| Reserve fuel capacity: | 3.30 litres (0.87 gallons) |
| Other specifications |
|---|
| Color options: | Silver |
| Comments: | Also called Stelvio 1200 TT ABS. |
