| General information |
|---|

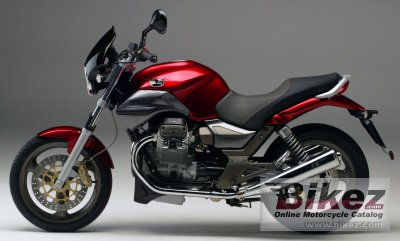

| Model: | Moto Guzzi Breva V 750 I.E. |
| Year: | 2004 |
| Category: | Naked bike |
| Rating: | 66.1 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 744.00 ccm (45.40 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 44.92 HP (32.8 kW)) @ 6800 RPM |
| Torque: | 74.17 Nm (7.6 kgf-m or 54.7 ft.lbs) @ 3600 RPM |
| Compression: | 9.6:1 |
| Bore x stroke: | 80.0 x 74.0 mm (3.1 x 2.9 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Injection |
| Fuel control: | OHC |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Detachable tubular duplex cradle |
| Rake (fork angle): | 28.0° |
| Trail: | 109 mm (4.3 inches) |
| Front suspension: | Marzocchi 40 mm hydraulic telescopic fork |
| Front suspension travel: | 130 mm (5.1 inches) |
| Rear suspension: | Swing arm in light cast alloy with two dampers, spring adjustable for pre-load and rebound |
| Rear suspension travel: | 118 mm (4.6 inches) |
| Front tyre dimensions: | 110/70-17 |
| Rear tyre dimensions: | 130/80-17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 260 mm (10.2 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 182.0 kg (401.2 pounds) |
| Power/weight ratio: | 0.2468 HP/kg |
| Seat height: | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Overall length: | 2,170 mm (85.4 inches) |
| Overall width: | 720 mm (28.3 inches) |
| Ground clearance: | 176 mm (6.9 inches) |
| Wheelbase: | 1,449 mm (57.0 inches) |
| Fuel capacity: | 18.00 litres (4.76 gallons) |
| Reserve fuel capacity: | 5.00 litres (1.32 gallons) |
| Other specifications |
|---|
| Color options: | Rosso breva, Grigio grigna, Nero pollare |
| Comments: | Breva V 750 IE -- Italian styling and the legendary 90º V-Twin in a lighter, more affordable package. It's the Moto Guzzi you've been waiting for. Available in Red, Black, Silver.
|
