| General information |
|---|

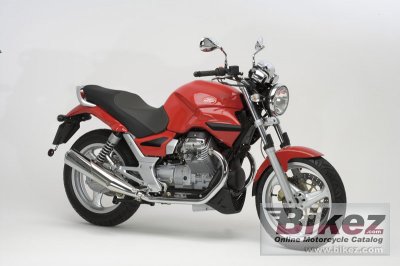

| Model: | Moto Guzzi Breva 750 |
| Year: | 2009 |
| Category: | Naked bike |
| Rating: | 67.9 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 7790. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 744.00 ccm (45.40 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 47.60 HP (34.7 kW)) |
| Torque: | 54.70 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM |
| Compression: | 9.6:1 |
| Bore x stroke: | 80.0 x 74.0 mm (3.1 x 2.9 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Injection. Weber-Marelli electric injection |
| Fuel control: | Overhead Valves (OHV) |
| Ignition: | Magneti Marelli IAW 15RC electronic digital ignition with inductive spark |
| Lubrication system: | By lobes with pressure pump |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Single disc dry with cush drive |
| Exhaust system: | Three-way catalyzer with Lambda sensor |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Detachable tubular duplex cradle in special high-strengh steel |
| Rake (fork angle): | 27.5° |
| Trail: | 109 mm (4.3 inches) |
| Front suspension: | Marzocchi hydraulic telescopic fork |
| Front wheel travel: | 130 mm (5.1 inches) |
| Rear suspension: | Swinging arm in light cast alloy with two dampers, preload adjustable |
| Rear wheel travel: | 95 mm (3.7 inches) |
| Front tyre: | 110/70-17 |
| Rear tyre: | 130/80-17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 260 mm (10.2 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 182.0 kg (401.2 pounds) |
| Power/weight ratio: | 0.2615 HP/kg |
| Seat height: | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height: | 1,175 mm (46.3 inches) |
| Overall length: | 2,170 mm (85.4 inches) |
| Overall width: | 730 mm (28.7 inches) |
| Ground clearance: | 190 mm (7.5 inches) |
| Wheelbase: | 1,449 mm (57.0 inches) |
| Fuel capacity: | 18.00 litres (4.76 gallons) |
| Reserve fuel capacity: | 4.00 litres (1.06 gallons) |
| Other specifications |
|---|
| Color options: | Black, red |
| Starter: | Electric |
