| General information |
|---|

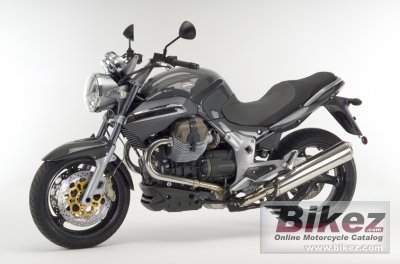

| Model: | Moto Guzzi Breva 1100 ABS |
| Year: | 2009 |
| Category: | Naked bike |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1064.00 ccm (64.93 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Power: | 84.48 HP (61.7 kW)) @ 7600 RPM |
| Torque: | 86.50 Nm (8.8 kgf-m or 63.8 ft.lbs) @ 6000 RPM |
| Compression: | 9.8:1 |
| Bore x stroke: | 92.0 x 80.0 mm (3.6 x 3.1 inches) |
| Fuel system: | Injection. Weber-Marelli electronic fuel injection with stepper motor control |
| Ignition: | Inductive spark, digitally controlled, electronic twin spark ignition |
| Starter: | Electric |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type
final drive: | Shaft drive (cardan) |
| Physical measures |
|---|
| Dry weight: | 232.0 kg (511.5 pounds) |
| Seat height: | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall length: | 2,195 mm (86.4 inches) |
| Overall width: | 870 mm (34.3 inches) |
| Ground clearance: | 190 mm (7.5 inches) |
| Wheelbase: | 1,495 mm (58.9 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Double cradle, in high tensile strenght tubular steel |
| Trail: | 120 mm (4.7 inches) |
| Front suspension: | Telescopic hydraulic fork with 45 mm, preload adjustable |
| Front suspension travel: | 120 mm (4.7 inches) |
| Rear suspension: | Single arm suspension progressive linkage, rear shock absorber adjustable in rebound ad pre-load (hydraulic). |
| Rear suspension travel: | 120 mm (4.7 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 180/55-ZR17 |
| Front brakes: | Single disc. Two channels anti-block system |
| Front brakes diameter: | 282 mm (11.1 inches) |
| Rear brakes: | Single disc. Two channels anti-block system |
| Rear brakes diameter: | 282 mm (11.1 inches) |
| Exhaust system: | Stainless steel, 2 in 1, with three ways catalyser and Lambda probe oxygen sensor |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.3641 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 23.00 litres (6.08 gallons) |
| Reserve fuel capacity: | 4.00 litres (1.06 gallons) |
| Color options: | Red, black, silver |
