| General information |
|---|

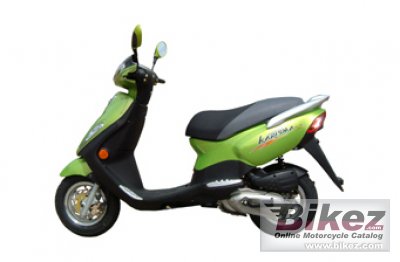

| Model: | Modenas Karisma 125 | | Year: | 2011 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 124.90 ccm (7.62 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 9.2:1 | | Bore x stroke: | 51.5 x 60.0 mm (2.0 x 2.4 inches) | | Fuel system: | Carburettor. Keihin CVK24 | | Fuel control: | SOHC | | Ignition: | CDI | | Lubrication system: | Compressed and Spray | | Cooling system: | Air | Transmission type,
final drive: | Belt | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel pipe | | Front suspension: | Telescopic | | Rear suspension: | Unit swing type, single shock | | Front brakes: | Single disc | | Rear brakes: | Expanding brake (drum brake) | | Physical measures and capacities |
|---|
| Fuel capacity: | 7.50 litres (1.98 gallons) | | Other specifications |
|---|
| Starter: | Electric & kick | | Color options: | Lime, red, light blue | | Comments: | Malaysian bike. | | Further information |
|---|
