| MBK's profilation of this bike |
| Liquid-cooled MachGs are about a third more powerful than their still zesty air-cooled brothers. Whatever colour it is, a MachG is a beautifully compact sporting ride, |
| General moped information |
|---|

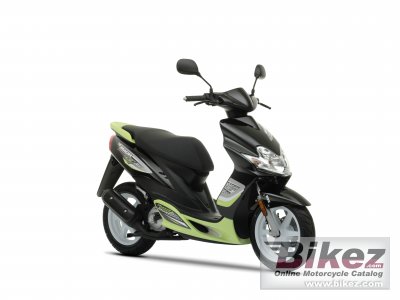

| Model: | MBK MachG Liquid Cooled | | Year: | 2009 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) | | Engine type: | Single cylinder, two-stroke | | Power: | 3.37 HP (2.5 kW)) @ 7000 RPM | | Torque: | 3.29 Nm (0.3 kgf-m or 2.4 ft.lbs) @ 6500 RPM | | Compression: | 11.4:1 | | Bore x stroke: | 40.0 x 39.2 mm (1.6 x 1.5 inches) | | Fuel system: | Carburettor | | Ignition: | CDI | | Lubrication system: | Separate lubrication | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel | | Front suspension: | Telescopic fork | | Front suspension travel: | 80 mm (3.1 inches) | | Rear suspension: | Unit swing | | Rear suspension travel: | 70 mm (2.8 inches) | | Front tyre dimensions: | 110/70-12 | | Rear tyre dimensions: | 120/70-12 | | Front brakes: | Single disc | | Front brakes diameter: | 190 mm (7.5 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 110 mm (4.3 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 79.0 kg (174.2 pounds) | | Weight incl. oil, gas, etc: | 82.0 kg (180.8 pounds) | | Power/weight ratio: | 0.0427 HP/kg | | Seat height: | 765 mm (30.1 inches) If adjustable, lowest setting. | | Overall height: | 1,065 mm (41.9 inches) | | Overall length: | 1,740 mm (68.5 inches) | | Ground clearance: | 132 mm (5.2 inches) | | Wheelbase: | 1,210 mm (47.6 inches) | | Fuel capacity: | 5.50 litres (1.45 gallons) | | Other specifications |
|---|
| Starter: | Electric & kick | | Further information |
|---|
