Malaguti SpiderMax RS500 2009

Picture credits - Malaguti. Click to submit more pictures.

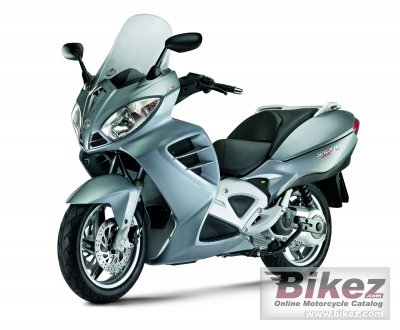

2009 Malaguti SpiderMax RS500

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes

Malaguti's profilation of this bike

Spidermax RS500 looks great, and grants the same top-notch quality of Malaguti. The nicely styled front panels are completely new designed, sharing the sporty motorbikes resemblance.

General information
Model:	Malaguti SpiderMax RS500
Year:	2009
Category:	Scooter
Rating:	70.9 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	493.00 ccm (30.08 cubic inches)
Engine type:	Single cylinder, four-stroke
Power:	40.90 HP (29.9 kW))
Torque:	40.42 Nm (4.1 kgf-m or 29.8 ft.lbs) @ 7250 RPM
Compression:	10.5:1
Bore x stroke:	94.0 x 71.0 mm (3.7 x 2.8 inches)
Valves per cylinder:	4
Fuel system:	Injection
Fuel control:	SOHC
Cooling system:	Liquid
Gearbox:	Automatic
Transmission type, final drive:	Belt
Clutch:	Centrifugal
Exhaust system:	Euro 3. Catalytic converter by lambda sensor.
Chassis, suspension, brakes and wheels
Frame type:	V-BOX aluminium monococque structure
Front suspension:	41 mm telescopic hydraulic fork
Rear suspension:	swinging engine and double hdyraulic shock absorbers with adjustable spring preloading.
Front tyre dimensions:	120/80-16
Rear tyre dimensions:	150/70-16
Front brakes:	Single disc
Front brakes diameter:	240 mm (9.4 inches)
Rear brakes:	Single disc
Rear brakes diameter:	220 mm (8.7 inches)
Physical measures and capacities
Dry weight:	204.0 kg (449.7 pounds)
Power/weight ratio:	0.2005 HP/kg
Seat height:	760 mm (29.9 inches) If adjustable, lowest setting.
Overall height:	1,430 mm (56.3 inches)
Overall length:	2,220 mm (87.4 inches)
Overall width:	810 mm (31.9 inches)
Wheelbase:	1,490 mm (58.7 inches)
Fuel capacity:	14.50 litres (3.83 gallons)
Other specifications
Starter:	Electric
Color options:	Silver, titanium, dark blue
Further information
Parts and accessories	Check out parts and accessories from our other partners.
Ask questions	Join the 09 Malaguti SpiderMax RS500 discussion group.
Insurance, loans, tests	Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs

Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this Malaguti. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.

Show any 2009 Malaguti SpiderMax RS500 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.

Rating sample for this Malaguti bike
Fun-factor for the 2009 Malaguti SpiderMax RS500: (73.3 out of 100) Click here for complete rating. You can also compare bikes.
