| General information |
|---|

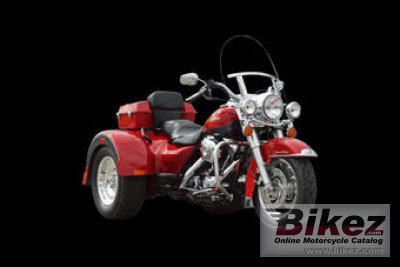

| Model: | Lehman Trikes Renegade Road King | | Year: | 2010 | | Category: | Touring | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 1584.00 ccm (96.66 cubic inches) | | Engine type: | V2, four-stroke | | Torque: | 131.00 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM | | Compression: | 9.2:1 | | Bore x stroke: | 95.3 x 111.1 mm (3.8 x 4.4 inches) | | Fuel system: | Injection. Electronic Sequential Port Fuel Injection | | Cooling system: | Air | | Gearbox: | 6-speed | Transmission type,
final drive: | Belt | | Clutch: | 9-plate, wet | | Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 26.0° | | Trail: | 173 mm (6.8 inches) | | Front suspension: | 41.3mm telescopic fork | | Front suspension travel: | 117 mm (4.6 inches) | | Rear suspension: | Air-adjustable | | Rear suspension travel: | 76 mm (3.0 inches) | | Front tyre dimensions: | 130/80-B17 | | Rear tyre dimensions: | 180/65-B16 | | Front brakes: | Single disc | | Front brakes diameter: | 300 mm (11.8 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 300 mm (11.8 inches) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 485.0 kg (1,069.2 pounds) | | Seat height: | 715 mm (28.1 inches) If adjustable, lowest setting. | | Overall length: | 2,591 mm (102.0 inches) | | Overall width: | 1,346 mm (53.0 inches) | | Ground clearance: | 145 mm (5.7 inches) | | Wheelbase: | 1,638 mm (64.5 inches) | | Fuel capacity: | 22.70 litres (6.00 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Comments: | Three wheels. Modified Harley-Davidson Road King. | | Further information |
|---|
