| General information |
|---|

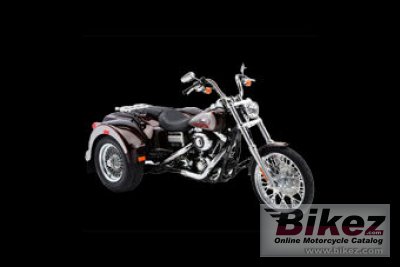

| Model: | Lehman Trikes Renegade Dyna |
| Year: | 2010 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 1584.00 ccm (96.66 cubic inches) |
| Engine type: | V2, four-stroke |
| Torque: | 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3125 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 95.3 x 111.1 mm (3.8 x 4.4 inches) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Fuel consumption: | 5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
| Greenhouse gases: | 116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Chrome Staggered Shorty Dual exhaust |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Mild steel, tubular frame; rectangular section backbone; stamped, |
| Rake (fork angle): | 29.0° |
| Trail: | 119 mm (4.7 inches) |
| Front suspension: | 49mm with polished aluminium fork |
| Front suspension travel: | 127 mm (5.0 inches) |
| Rear suspension: | Coil-over shock |
| Rear suspension travel: | 104 mm (4.1 inches) |
| Front tyre dimensions: | 100/90-19 |
| Rear tyre dimensions: | 160/70-B17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 292 mm (11.5 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 464.0 kg (1,022.9 pounds) |
| Seat height: | 675 mm (26.6 inches) If adjustable, lowest setting. |
| Overall height: | 1,188 mm (46.8 inches) |
| Overall length: | 2,692 mm (106.0 inches) |
| Overall width: | 1,346 mm (53.0 inches) |
| Ground clearance: | 135 mm (5.3 inches) |
| Wheelbase: | 1,664 mm (65.5 inches) |
| Fuel capacity: | 18.16 litres (4.80 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Comments: | Three wheels. Modified Harley-Davidson Softail Dyna. |
