| Kymco's profilation of this bike |
| With racing bike image and focused on the target of build up a brand new model. And design for those people who were tend to have an experience of naked bike but also consider about utility for daily life. |
|
General information |
|
Motorcycle name
|

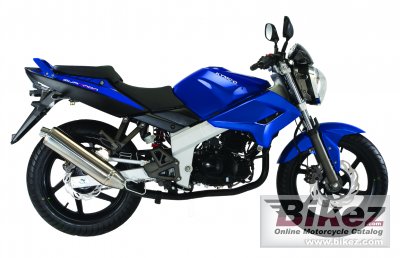

Kymco Quannon Naked 125 |
|
Model year
|
2010 |
|
Category
|
Naked bike |
|
Rating
|
3.3 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
124.1 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
12.9 HP (9.4 kW)) @ 9500 RPM |
|
Torque
|
9.8 Nm (1.0 kgf-m or 7.2 ft.lbs) @ 8500 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle |
|
Front suspension
|
Telescopic fork |
|
Rear suspension
|
Single swing |
|
Front tire
|
110/80-17 |
|
Rear tire
|
140/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
276 mm (10.9 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
132.0 kg (291.0 pounds) |
|
Power/weight ratio
|
0.0975 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1174 mm (46.2 inches) |
|
Overall length
|
2057 mm (81.0 inches) |
|
Overall width
|
783 mm (30.8 inches) |
|
Ground clearance
|
170 mm (6.7 inches) |
|
Wheelbase
|
1355 mm (53.3 inches) |
|
Fuel capacity
|
13.50 litres (3.57 US gallons) |
|
Other specifications |
|
Color options
|
Blue/gray |
|
Starter
|
Electric & kick |
|
Comments
|
Kymco is an abbreviation of Kwang Yang Motor Company in Taiwan. |
