10 KTM 85 SX 19/16 specificationsKTM 85 SX 19/16 2010

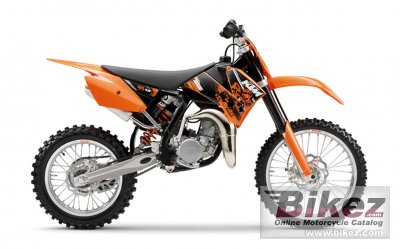

2010 KTM 85 SX 19-16 photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2010 KTM 85 SX 19/16 imageShow more 2010 KTM 85 SX 19/16 images
2010 KTM 85 SX 19/16

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
Be it power, chassis or quality - the 85 SX is a contender which strikes fear into your opponents.

General information
Model:KTM 85 SX 19/16
Year:2010
Category:Minibike, cross
Rating:Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating.
Engine and transmission
Displacement:84.90 ccm (5.18 cubic inches)
Engine type:Single cylinder, two-stroke
Bore x stroke:47.0 x 49.0 mm (1.9 x 1.9 inches)
Fuel system:Carburettor. Keihin PWK 28
Ignition:Moric digital 2M1
Lubrication system:Mixture oil lubrication 1:40
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Wet mDouble disk clutch, operated hydraulically
Exhaust system:Aluminium
Chassis, suspension, brakes and wheels
Frame type:Double grinded central double-cradle-type frame
Rake (fork angle):24.0
Front suspension:WP USD 43 mm fork
Front suspension travel:280 mm (11.0 inches)
Rear suspension:WP PDS mono shock
Rear suspension travel:300 mm (11.8 inches)
Front tyre dimensions:70/100-19
Rear tyre dimensions:90/100-16
Front brakes:Single disc
Front brakes diameter:220 mm (8.7 inches)
Rear brakes:Single disc
Rear brakes diameter:200 mm (7.9 inches)
Physical measures and capacities
Dry weight:68.0 kg (149.9 pounds)
Seat height:875 mm (34.4 inches) If adjustable, lowest setting.
Ground clearance:415 mm (16.3 inches)
Wheelbase:1,290 mm (50.8 inches)
Fuel capacity:5.00 litres (1.32 gallons)
Other specifications
Color options:Orange
Comments:Also available with 17/14 inch wheels.
