05 KTM 85 SX (19/16) specificationsKTM 85 SX (19/16) 2005

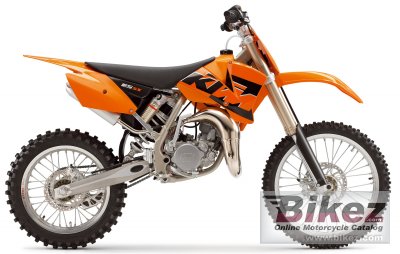

2005 KTM 85 SX (19-16) photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2005 KTM 85 SX (19/16) image
2005 KTM 85 SX (19/16)

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
Fully-fledged race bike with 43 mm White Power USD forks and fully adjustable PDS shock, exhaust control with centrifugal force timing for juicy torque and the highest performacne. Seat-height from 900 mm, for racers from 11 to 15 years old.

General information
Model:KTM 85 SX (19/16)
Year:2005
Category:Minibike, cross
Rating:76.7 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:84.90 ccm (5.18 cubic inches)
Engine type:Single cylinder, two-stroke
Bore x stroke:47.0 x 49.0 mm (1.9 x 1.9 inches)
Fuel system:Carburettor. Keihin PWK 28
Ignition:Moric digital 2M1
Cooling system:Liquid
Transmission type,
final drive:
Chain
Clutch:Wet multi-disc clutch, operated hydraulically
Chassis, suspension, brakes and wheels
Frame type:Chromium molybdenum
Rake (fork angle):24.0
Trail:81 mm (3.2 inches)
Front suspension:WP USD
Front suspension travel:43 mm (1.7 inches)
Rear suspension:WP PDS monoshock
Front brakes:Single disc
Front brakes diameter:216 mm (8.5 inches)
Rear brakes:Single disc
Rear brakes diameter:216 mm (8.5 inches)
Physical measures and capacities
Dry weight:68.0 kg (149.9 pounds)
Seat height:900 mm (35.4 inches) If adjustable, lowest setting.
Ground clearance:415 mm (16.3 inches)
Wheelbase:1,278 mm (50.3 inches)
Fuel capacity:5.00 litres (1.32 gallons)
Other specifications
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 05 KTM 85 SX (19/16) discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2005 KTM 85 SX (19/16) discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.


Rating sample for this KTM bike
Touring capabilities for the 2005 KTM 85 SX (19/16):


(70.5 out of 100)

Click here for complete rating. You can also compare bikes.
