06 KTM 85 SX (17-14) specificationsKTM 85 SX (17-14) 2006

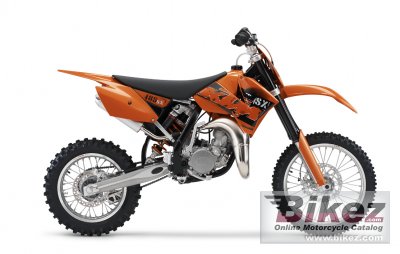

2006 KTM 85 SX (17-14) photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2006 KTM 85 SX (17-14) imageShow more 2006 KTM 85 SX (17-14) images
2006 KTM 85 SX (17-14)

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
Fully revised, grown-up racing bike with more stable frame, 43 mm WP Upside Down fork and fully adjustable PDS system, strengthened clutch and transmission, new rear disk brake and much more. The centrifugal exhaust control system provides plenty of torque and top end performance. Seat height starts at 900 mm, for racers between 11-15 years.

General information
Model:KTM 85 SX (17-14)
Year:2006
Category:Minibike, cross
Rating:73.2 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:84.90 ccm (5.18 cubic inches)
Engine type:Single cylinder, two-stroke
Bore x stroke:47.0 x 49.0 mm (1.9 x 1.9 inches)
Fuel system:Carburettor. Keihin PWK 28
Ignition:Moric digital 2M1
Lubrication system:0,5 l Motorex Topspeed 4T
Cooling system:Liquid
Clutch:Wet multi-disc clutch, operated hydraulically
Exhaust system:Aluminum
Chassis, suspension, brakes and wheels
Frame type:Chromium molybdenum
Rake (fork angle):24.0
Front suspension:WP USD 43 mm (1.69 inches)
Rear suspension:WP monoshock PDS
Front brakes:Single disc
Front brakes diameter:220 mm (8.7 inches)
Rear brakes:Single disc
Rear brakes diameter:200 mm (7.9 inches)
Physical measures and capacities
Dry weight:66.0 kg (145.5 pounds)
Seat height:750 mm (29.5 inches) If adjustable, lowest setting.
Ground clearance:385 mm (15.2 inches)
Wheelbase:1,290 mm (50.8 inches)
Fuel capacity:5.00 litres (1.32 gallons)
Other specifications
Starter:Kick
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 06 KTM 85 SX (17-14) discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.

Show any 2006 KTM 85 SX (17-14) for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.


Rating sample for this KTM bike
Engine performance for the 2006 KTM 85 SX (17-14):


(77.7 out of 100)

Click here for complete rating. You can also compare bikes.
