KTM's profilation of this bike For racers from 11 to 15 years old.

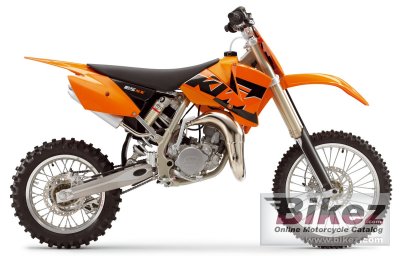

General information Model: KTM 85 SX (17/14) Year: 2005 Category: Minibike, cross Rating: 72.3 out of 100. Show full rating and compare with other bikes Engine and transmission Displacement: 84.90 ccm (5.18 cubic inches) Engine type: Single cylinder, two-stroke Bore x stroke: 47.0 x 49.0 mm (1.9 x 1.9 inches) Fuel system: Carburettor. Keihin PWK 28 Ignition: Moric digital 2M1 Cooling system: Liquid Transmission type, final drive: Chain Clutch: Wet multi-disc clutch, operated hydraulically Chassis, suspension, brakes and wheels Frame type: Chromium molybdenum Rake (fork angle): 24.0° Trail: 81 mm (3.2 inches) Front suspension: WP USD Front suspension travel: 43 mm (1.7 inches) Rear suspension: WP PDS monoshock Front brakes: Single disc Front brakes diameter: 216 mm (8.5 inches) Rear brakes: Single disc Rear brakes diameter: 216 mm (8.5 inches) Physical measures and capacities Dry weight: 68.0 kg (149.9 pounds) Seat height: 900 mm (35.4 inches) If adjustable, lowest setting. Ground clearance: 415 mm (16.3 inches) Wheelbase: 1,278 mm (50.3 inches) Fuel capacity: 5.00 litres (1.32 gallons) Other specifications Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questions Join the 05 KTM 85 SX (17/14) discussion group.
Insurance, loans, tests
Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes List related bikes for comparison of specs
Rating sample for this KTM bike
Racing track capabilities for the 2005 KTM 85 SX (17/14): (78.0 out of 100) You can also compare bikes.
