| General information |
|---|

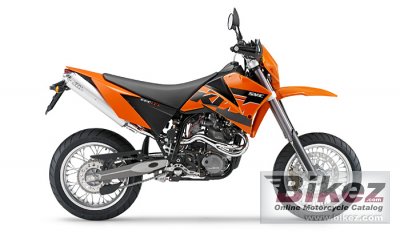

| Model: | KTM 660 SMC |
| Year: | 2007 |
| Category: | Super motard |
| Rating: | 62.9 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 654.00 ccm (39.91 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 28.16 HP (20.6 kW)) @ 6250 RPM |
| Torque: | 42.50 Nm (4.3 kgf-m or 31.3 ft.lbs) @ 3250 RPM |
| Compression: | 11.7:1 |
| Bore x stroke: | 102.0 x 80.0 mm (4.0 x 3.1 inches) |
| Fuel system: | Carburettor. Keihin MX FCR 41 |
| Fuel control: | OHC |
| Ignition: | Kokusan DC-CDI |
| Lubrication system: | Pressure lubrication with 2 oil pumps |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
| Clutch: | Wet multi-disc clutch, operated hydraulically |
| Exhaust system: | 2 x aluminium |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double ground, chrommoly-steel frame, powder-coated |
| Rake (fork angle): | 27.0° |
| Trail: | 99 mm (3.9 inches) |
| Front suspension: | WP USD |
| Front suspension travel: | 115 mm (4.5 inches) |
| Rear suspension: | WP monoshock with Pro Lever |
| Rear suspension travel: | 185 mm (7.3 inches) |
| Front tyre dimensions: | 120/70-17 |
| Rear tyre dimensions: | 160/60-17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 138.0 kg (304.2 pounds) |
| Power/weight ratio: | 0.2041 HP/kg |
| Seat height: | 910 mm (35.8 inches) If adjustable, lowest setting. |
| Ground clearance: | 290 mm (11.4 inches) |
| Wheelbase: | 1,510 mm (59.4 inches) |
| Fuel capacity: | 9.20 litres (2.43 gallons) |
| Other specifications |
|---|
| Starter: | Kick |
| Further information |
|---|
