KTM's profilation of this bike |
The smaller tank, the lean seat and the very sharp Keihin flat slide carburettor ensures a real race feeling. Also, with this one, you don’t have to miss out on the E-Starter. |
General information |
Model name
|

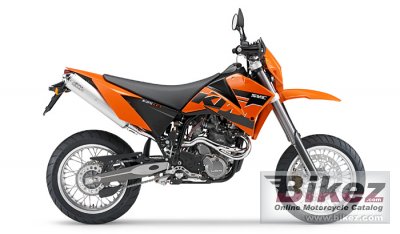

KTM 625 SMC |
Year of manufacture
|
2007 |
Type
|
Super motard |
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
625.0 ccm (38.14 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Output
|
28.2 HP (20.6 kW)) @ 6000 RPM |
Torque
|
41.0 Nm (4.2 kgf-m or 30.2 ft.lbs) @ 3250 RPM |
Compression
|
11.7:1 |
Bore x stroke
|
101.0 x 78.0 mm (4.0 x 3.1 inches) |
Fuel system
|
Carburettor. Keihin MX FCR 41 |
Fuel control
|
Overhead Cams (OHC) |
Ignition
|
Kokusan DC-CDI |
Lubrication system
|
Pressure lubrication with 2 oil pumps |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Clutch
|
Wet multi-disc clutch, operated hydraulically |
Exhaust system
|
2 x aluminium |
Chassis, suspension, brakes and wheels |
Frame type
|
Chromium-molybdenum, powder-coated |
Rake (fork angle)
|
27.0° |
Trail
|
99 mm (3.9 inches) |
Front suspension
|
WP USD |
Front wheel travel
|
115 mm (4.5 inches) |
Rear suspension
|
WP monoshock |
Rear wheel travel
|
185 mm (7.3 inches) |
Front tire
|
120/70-17 |
Rear tire
|
160/60-17 |
Front brakes
|
Single disc |
Diameter
|
320 mm (12.6 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
146.0 kg (321.9 pounds) |
Power/weight ratio
|
0.1929 HP/kg |
Seat height
|
910 mm (35.8 inches) If adjustable, lowest setting. |
Ground clearance
|
280 mm (11.0 inches) |
Wheelbase
|
1510 mm (59.4 inches) |
Fuel capacity
|
9.20 litres (2.43 US gallons) |
Other specifications |
Color options
|
Orange |
Starter
|
Electric & kick |
