13 KTM 50 SX specificationsKTM 50 SX 2013

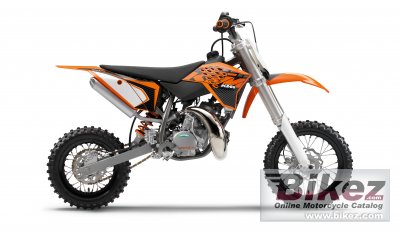

2013 KTM 50 SX photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2013 KTM 50 SX imageShow more 2013 KTM 50 SX images
2013 KTM 50 SX

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds

Tip a friend
List related bikes



KTM's profilation of this bike
A real KTM for the smallest of future MX champions from the age of three or four years. The 40 kg, lightweight 2013 KTM 50 SX sets standards in terms of safety, controllability and riding fun. It has everything that impresses riders up to height of 1.30 m and reassures their parents: a high-quality chassis with easily applied disc brakes, top-quality components wherever you look, a powerful, reliable engine with easy-to-operate centrifugal clutch.

General moped information
Model:KTM 50 SX
Year:2013
Category:Cross / motocross
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:49.00 ccm (2.99 cubic inches)
Engine type:Single cylinder, two-stroke
Engine details:Reed intake.
Bore x stroke:39.5 x 40.0 mm (1.6 x 1.6 inches)
Ignition:SELETTRA 2p D36
Lubrication system:Mixture oil lubrication
Cooling system:Liquid
Transmission type,
final drive:
Chain
Clutch:3-lining automatic clutch on the main shaft / centrifugal force
Driveline:11:40. Primary drive: 33:61 straight cut spur gear.
Chassis, suspension, brakes and wheels
Frame type:Central tube frame of chrome molybdenum steel tubing, powder-coated
Rake (fork angle):24.0°
Front suspension:WP  Suspension USD  35
Front suspension travel:205 mm (8.1 inches)
Rear suspension:WP  Suspension  3614 BAEM
Rear suspension travel:185 mm (7.3 inches)
Front brakes:Single disc. Four-piston calipers.
Front brakes diameter:160 mm (6.3 inches)
Rear brakes:Single disc. Two-piston calipers.
Rear brakes diameter:140 mm (5.5 inches)
Physical measures and capacities
Dry weight:41.5 kg (91.5 pounds)
Seat height:684 mm (26.9 inches) If adjustable, lowest setting.
Ground clearance:252 mm (9.9 inches)
Wheelbase:1,032 mm (40.6 inches)
Fuel capacity:2.30 litres (0.61 gallons)
Other specifications
Starter:Kick
Color options:Orange/black
