KTM 450 SX-F 2012

2012 KTM 450 SX-F specifications, pictures, reviews and rating

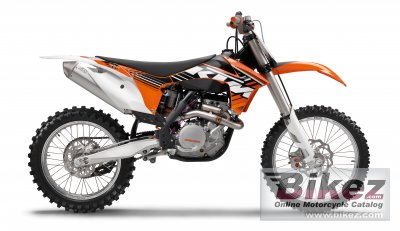

Picture credits - KTM. Click to submit more pictures.

2012 KTM 450 SX-F

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

KTM's profilation of this bike

When it comes to pure power, there is still nothing to replace displacement. The only problem is applying the power to the ground. The 450 SX-F´s high-quality chassis allows advanced riders to convert the brutal power of the innovative DOHC four-stroke engine into controllable traction, even on the toughest MX tracks.

General information
Model:	KTM 450 SX-F
Year:	2012
Category:	Enduro / offroad
Rating:	69.8 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	449.30 ccm (27.42 cubic inches)
Engine type:	Single cylinder, four-stroke
Compression:	12.5:1
Bore x stroke:	97.0 x 60.8 mm (3.8 x 2.4 inches)
Fuel control:	DOHC
Ignition:	Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication system:	Forced oil lubrication with 3 Eaton pumps
Cooling system:	Liquid
Gearbox:	5-speed
Transmission type, final drive:	Chain
Clutch:	Wet mDouble disk clutch / hydraulically operated
Driveline:	14:52. Primary 29:74.
Chassis, suspension, brakes and wheels
Frame type:	Central tube frame made of chrome molybdenum steel tubing
Rake (fork angle):	26.5°
Front suspension:	WP Suspension Up Side Down 4860 MXMA CC
Front suspension travel:	300 mm (11.8 inches)
Rear suspension:	WP Suspension 5018 BAVP DCC
Rear suspension travel:	330 mm (13.0 inches)
Front tyre dimensions:	80/100-21
Rear tyre dimensions:	110/90-19
Front brakes:	Single disc
Front brakes diameter:	260 mm (10.2 inches)
Rear brakes:	Single disc
Rear brakes diameter:	220 mm (8.7 inches)
Physical measures and capacities
Dry weight:	107.8 kg (237.7 pounds)
Seat height:	992 mm (39.1 inches) If adjustable, lowest setting.
Ground clearance:	371 mm (14.6 inches)
Wheelbase:	1,495 mm (58.9 inches)
Fuel capacity:	7.50 litres (1.98 gallons)
Other specifications
Starter:	Electric
Electrical:	12V 3 Ah battery
Color options:	Orange/black/white
Further information
Parts and accessories	Check out parts and accessories from our other partners.
Ask questions	Join the 12 KTM 450 SX-F discussion group.
Insurance, loans, tests	Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs
