13 KTM 450 Rally Replica specificationsKTM 450 Rally Replica 2013

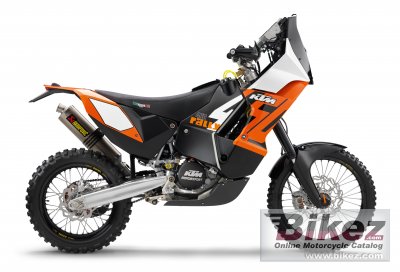

2013 KTM 450 Rally Replica photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2013 KTM 450 Rally Replica image
2013 KTM 450 Rally Replica

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
Eleven times in a row, victory at the notorious Rallye Dakar has now gone to KTM. Since the displacement reduction to 450 cc, the KTM 450 Rally is the bike to beat it was no accident that the last two years Marc Coma and Cyril Despres triumphed with this bike at what probably is the toughest motorcycle race of the planet, and there is a reason why much more than half of the grid has been using bikes from Mattighofen for years.

General information
Model:KTM 450 Rally Replica
Year:2013
Category:Enduro / offroad
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:449.30 ccm (27.42 cubic inches)
Engine type:Single cylinder, four-stroke
Engine details:Radial cylinder head with DLC coated finger followers
Compression:11.8:1
Bore x stroke:95.0 x 63.4 mm (3.7 x 2.5 inches)
Valves per cylinder:4
Fuel system:Injection. Keihin
Fuel control:OHC
Ignition:Keihin EMS
Lubrication system:Pressure lubrication with 2 oil pumps
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Wet multi-disc clutch, Brembo hydraulics
Driveline:14:52 (13:52). Primary ratio 32:76. X-Ring 5/8 x 1/4.
Exhaust system: Akrapovic Exhaust System
Chassis, suspension, brakes and wheels
Frame type:Central double-cradle-type 25CrMo4. Subframe: Aluminium.
Rake (fork angle):26.5
Front suspension:WP-USD
Front suspension travel:300 mm (11.8 inches)
Rear suspension:WP-PDS shock absorber
Rear suspension travel:335 mm (13.2 inches)
Front tyre dimensions:90/90-21
Rear tyre dimensions:140/80-18
Front brakes:Single disc
Front brakes diameter:260 mm (10.2 inches)
Rear brakes:Single disc
Rear brakes diameter:220 mm (8.7 inches)
Wheels:1.60 x 21; 2.15 x 18 Excel
Physical measures and capacities
Dry weight:111.0 kg (244.7 pounds)
Seat height:970 mm (38.2 inches) If adjustable, lowest setting.
Ground clearance:345 mm (13.6 inches)
Wheelbase:1,482 mm (58.3 inches)
Fuel capacity:9.50 litres (2.51 gallons)
Other specifications
Starter:Electric & kick
Comments:Racing tuned version.
