| General information |
|---|

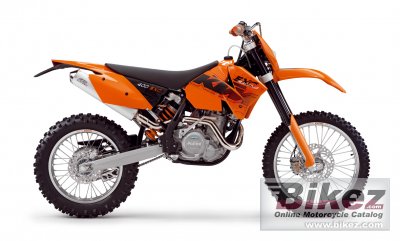

| Model: | KTM 400 EXC Racing |
| Year: | 2006 |
| Category: | Enduro / offroad |
| Rating: | 72 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 398.20 ccm (24.30 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 11.0:1 |
| Bore x stroke: | 89.0 x 64.0 mm (3.5 x 2.5 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor. Keihin MX FCR 39 |
| Fuel control: | OHC |
| Ignition: | Kokusan digital 4K-3B |
| Lubrication system: | Pressure lubrication with 2 Eaton pumps |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
| Clutch: | Wet multi-disc clutch, operated hydraulically |
| Exhaust system: | Aluminum |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Central double-cradle-type 25 CrMo4 |
| Rake (fork angle): | 26.5° |
| Trail: | 112 mm (4.4 inches) |
| Front suspension: | WP-USD 48 mm (1.89 inches) |
| Front suspension travel: | 300 mm (11.8 inches) |
| Rear suspension: | WP-PDS-shock absorber |
| Rear suspension travel: | 335 mm (13.2 inches) |
| Front tyre dimensions: | 90/90-21 |
| Rear tyre dimensions: | 140/80-18 |
| Front brakes: | Single disc |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 113.5 kg (250.2 pounds) |
| Seat height: | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Ground clearance: | 380 mm (15.0 inches) |
| Wheelbase: | 1,481 mm (58.3 inches) |
| Fuel capacity: | 8.00 litres (2.11 gallons) |
| Other specifications |
|---|
| Starter: | Electric & kick |
| Comments: | Not available in the USA. |
