General information |
---|

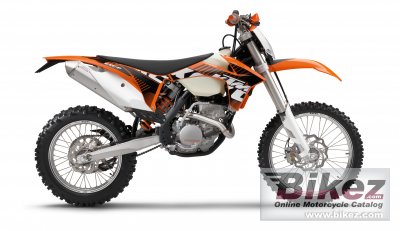

Model: | KTM 250 EXC-F |
Year: | 2012 |
Category: | Enduro / offroad |
Rating: | 67 out of 100. Show full rating and compare with other bikes |
Engine and transmission |
---|
Displacement: | 248.60 ccm (15.17 cubic inches) |
Engine type: | Single cylinder, four-stroke |
Compression: | 12.8:1 |
Bore x stroke: | 76.0 x 54.8 mm (3.0 x 2.2 inches) |
Fuel system: | Injection |
Ignition: | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
Lubrication system: | Forced oil lubrication with 2 Eaton pumps |
Cooling system: | Liquid |
Gearbox: | 6-speed |
Transmission type, final drive: | Chain |
Clutch: | Wet multi-disc clutch / hydraulically operated |
Driveline: | 14:50 (13:50). Primary gear ration 22:68. |
Chassis, suspension, brakes and wheels |
---|
Frame type: | Central tube frame made of chrome molybdenum steel tubing |
Rake (fork angle): | 26.5° |
Front suspension: | WP USD 48 mm (1.89 in) |
Front wheel travel: | 300 mm (11.8 inches) |
Rear suspension: | WP PDS shock absorber |
Rear wheel travel: | 335 mm (13.2 inches) |
Front tyre: | 90/90-21 |
Rear tyre: | 120/90-18 |
Front brakes: | Single disc |
Front brakes diameter: | 260 mm (10.2 inches) |
Rear brakes: | Single disc |
Rear brakes diameter: | 220 mm (8.7 inches) |
Physical measures and capacities |
---|
Dry weight: | 107.5 kg (237.0 pounds) |
Seat height: | 970 mm (38.2 inches) If adjustable, lowest setting. |
Ground clearance: | 345 mm (13.6 inches) |
Wheelbase: | 1,482 mm (58.3 inches) |
Fuel capacity: | 9.20 litres (2.43 gallons) |
Other specifications |
---|
Color options: | Orange/white/black |
Starter: | Electric & kick |
