| KTM's profilation of this bike |

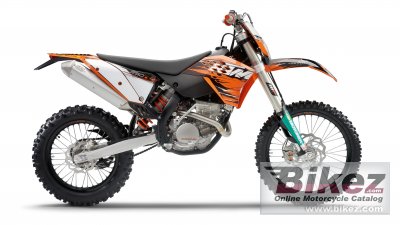

| The smallest KTM four-stroke mercilessly shows what itīs made of. The latest four-valve technology gives the 250 EXC-F massive thrust from the bottom of the range up into the highest speed ranges. |
| General information |
|---|
| Model: | KTM 250 EXC-F | | Year: | 2010 | | Category: | Enduro / offroad | | Rating: | 56.6 out of 100. Show full rating and compare with other bikes | | Engine and transmission |
|---|
| Displacement: | 248.60 ccm (15.17 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 12.8:1 | | Bore x stroke: | 76.0 x 54.8 mm (3.0 x 2.2 inches) | | Valves per cylinder: | 4 | | Fuel system: | Carburettor. Keihin FCR MX 39 | | Fuel control: | DOHC | | Ignition: | Kokusan | | Lubrication system: | Pressure lubrication with 2 oil pumps | | Cooling system: | Liquid | | Gearbox: | 6-speed | Transmission type,
final drive: | Chain | | Clutch: | Wet mDouble disk clutch, operated hydraulically | | Exhaust system: | Aluminium | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Central double-cradle-type 25CrMo4 steel | | Rake (fork angle): | 26.5° | | Front suspension: | WP USD fork, 48 mm | | Front suspension travel: | 300 mm (11.8 inches) | | Rear suspension: | WP PDS shock absorber | | Rear suspension travel: | 335 mm (13.2 inches) | | Front tyre dimensions: | 90/90-21 | | Rear tyre dimensions: | 120/90-18 | | Front brakes: | Single disc | | Rear brakes: | Single disc | | Physical measures and capacities |
|---|
| Dry weight: | 105.7 kg (233.0 pounds) | | Seat height: | 985 mm (38.8 inches) If adjustable, lowest setting. | | Ground clearance: | 380 mm (15.0 inches) | | Wheelbase: | 1,475 mm (58.1 inches) | | Fuel capacity: | 9.20 litres (2.43 gallons) | | Other specifications |
|---|
| Starter: | Electric & kick | | Color options: | Orange/black/gray | | Comments: | KTMīs Offroad Competition ECX model series. | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 10 KTM 250 EXC-F discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
