KTM 200 Duke 2012

2012 KTM 200 Duke specifications, pictures, reviews and rating

Picture credits - KTM. Click to submit more pictures.

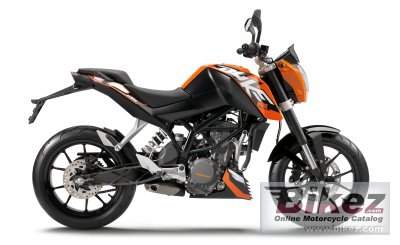

2012 KTM 200 Duke

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

KTM's profilation of this bike

200 Duke: Lightness rediscovered - or the 125 Duke for grown-ups. Maximum riding fun, powerful propulsion and optimum user value thanks to thoroughbred motorcycle technology. Featherweight chassis with high-quality components and first-class brakes.

General information
Model:	KTM 200 Duke
Year:	2012
Category:	Naked bike
Rating:	70.3 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	200.00 ccm (12.20 cubic inches)
Engine type:	Single cylinder, four-stroke
Power:	20.60 HP (15.0 kW)) @ 10500 RPM
Torque:	12.00 Nm (1.2 kgf-m or 8.9 ft.lbs) @ 8000 RPM
Bore x stroke:	72.0 x 49.0 mm (2.8 x 1.9 inches)
Fuel system:	Injection
Ignition:	Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication system:	Forced oil lubrication with 1 rotor pump
Cooling system:	Liquid
Gearbox:	6-speed
Transmission type, final drive:	Chain
Clutch:	Clutch in oil bath / mechanically operated
Driveline:	22:71. Secondary gear ratio 14:43.
Chassis, suspension, brakes and wheels
Frame type:	Tubular space frame made from steel tubes, powder-coated
Rake (fork angle):	25.0°
Trail:	100 mm (3.9 inches)
Front suspension:	WP Suspension 4357
Front suspension travel:	150 mm (5.9 inches)
Rear suspension:	WP Suspension 4618 EM
Rear suspension travel:	150 mm (5.9 inches)
Front brakes:	Double disc. Two-pot brake caliper
Front brakes diameter:	300 mm (11.8 inches)
Rear brakes:	Single disc
Rear brakes diameter:	230 mm (9.1 inches)
Physical measures and capacities
Dry weight:	125.0 kg (275.6 pounds)
Power/weight ratio:	0.1648 HP/kg
Seat height:	810 mm (31.9 inches) If adjustable, lowest setting.
Ground clearance:	170 mm (6.7 inches)
Wheelbase:	1,361 mm (53.6 inches)
Fuel capacity:	11.00 litres (2.91 gallons)
Other specifications
Starter:	Electric
Color options:	Black/orange
Further information
Parts and accessories	Check out parts and accessories from our other partners.
Ask questions	Join the 12 KTM 200 Duke discussion group.
Insurance, loans, tests	Check out approximate insurance costs here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs
