12 KTM 1190 RC8 R Race Specs specificationsKTM 1190 RC8 R Race Specs 2012

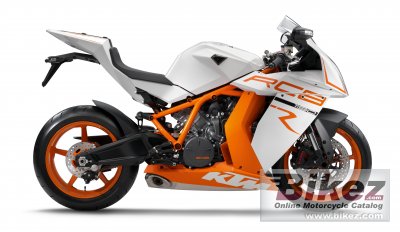

2012 KTM 1190 RC8 R Race Specs photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2012 KTM 1190 RC8 R Race Specs imageShow more 2012 KTM 1190 RC8 R Race Specs images
2012 KTM 1190 RC8 R Race Specs

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
A strictly limited number of bikes for those who want to use their 1190 RC8 R exclusively on the racetrack. Factory-homologated for Superstock and built to be ´ready to race´ by the KTM Racing Division, with all the goodies from the KTM PowerParts range that make the potential for race success even greater.

General information
Model:KTM 1190 RC8 R Race Specs
Year:2012
Category:Sport
Rating:60.3 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1195.00 ccm (72.92 cubic inches)
Engine type:V2, four-stroke
Engine details:Otto motor, 75° V arrangement
Power:177.00 HP (129.2 kW)) @ 4000 RPM
Torque:123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 RPM
Compression:13.5:1
Bore x stroke:105.0 x 69.0 mm (4.1 x 2.7 inches)
Fuel system:Injection. Keihin
Ignition:Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication system:Dry-sump lubrication with 3 rotor pumps
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Wet multi-disc clutch / hydraulically operated
Driveline:17:37. Primary drive: 40:76. 5/8 x 1/4” (520) X and #8209;Ring chain.
Chassis, suspension, brakes and wheels
Frame type:Tubular space frame made from chrome molybdenum steel, powder-coated
Front suspension:WP Suspension Up Side Down 4354
Front suspension travel:120 mm (4.7 inches)
Rear suspension:WP Suspension 4618 DACC
Rear suspension travel:120 mm (4.7 inches)
Front tyre dimensions:120/70-17
Rear tyre dimensions:190/55-17
Front brakes:Double disc. Radially mounted four-piston brake calipers; floating brake discs
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc. Two piston, fixed caliper
Rear brakes diameter:220 mm (8.7 inches)
Physical measures and capacities
Dry weight:173.0 kg (381.4 pounds)
Power/weight ratio:1.0231 HP/kg
Seat height:845 mm (33.3 inches) If adjustable, lowest setting.
Ground clearance:110 mm (4.3 inches)
Wheelbase:1,425 mm (56.1 inches)
Other specifications
Starter:Electric
Color options:White/orange
Comments:Also is called KTM 1190 RC8 R Track in Europe.
