| Kawasaki's profilation of this bike |
| Independent rear suspension and double wishbone front layout allows accurate wheel tracking and supreme operator comfort. |
| General information |
|---|

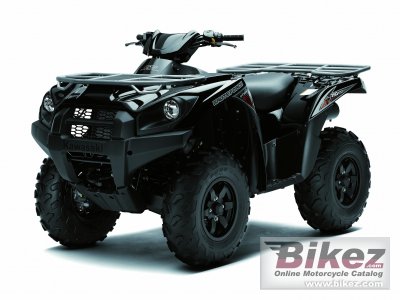

| Model: | Kawasaki KVF750 4x4 | | Year: | 2012 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 749.00 ccm (45.70 cubic inches) | | Engine type: | V2, four-stroke | | Engine details: | 90 degree V-twin | | Power: | 49.75 HP (36.3 kW)) @ 6500 RPM | | Torque: | 59.40 Nm (6.1 kgf-m or 43.8 ft.lbs) @ 4500 RPM | | Compression: | 9.3:1 | | Bore x stroke: | 85.0 x 66.0 mm (3.3 x 2.6 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection. DFI ; (2) 36mm Mikuni throttle bodies | | Fuel control: | SOHC | | Ignition: | TCBI with digital advance | | Cooling system: | Liquid | Transmission type,
final drive: | Shaft drive (cardan) | | Driveline: | Selectable four-wheel drive with Variable Front Differential Control, shaft | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double-cradle, high-tensile tubular steel | | Front suspension: | Double wishbone with twin shock absorbers | | Front suspension travel: | 171 mm (6.7 inches) | | Rear suspension: | Double wishbone with double shock absorbers | | Rear suspension travel: | 200 mm (7.9 inches) | | Front tyre dimensions: | 25/8-12 | | Rear tyre dimensions: | 25/10-12 | | Front brakes: | Double disc | | Front brakes diameter: | 200 mm (7.9 inches) | | Rear brakes: | Sealed multidisc | | Physical measures and capacities |
|---|
| Dry weight: | 275.0 kg (606.3 pounds) | | Weight incl. oil, gas, etc: | 297.0 kg (654.8 pounds) | | Power/weight ratio: | 0.1809 HP/kg | | Overall height: | 1,233 mm (48.5 inches) | | Overall length: | 2,195 mm (86.4 inches) | | Overall width: | 1,166 mm (45.9 inches) | | Ground clearance: | 247 mm (9.7 inches) | | Wheelbase: | 1,285 mm (50.6 inches) | | Fuel capacity: | 19.00 litres (5.02 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Instruments: | Speedometer, odometer, dual trip meters, fuel gauge, engine temp, clock, hour meter and 2WD/4WD icon, plus indicators for neutral, reverse, belt, and oil pressure. | | Light: | 35W headlights, 5W taillight, 21W stoplight | | Factory warranty: | 12 Months | | Color options: | Red, green | | Further information |
|---|
