| General information |
|---|

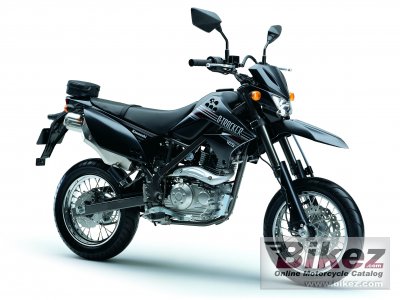

| Model: | Kawasaki KLX 125D | | Year: | 2010 | | Category: | Super motard | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Torque: | 10.00 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 6400 RPM | | Compression: | 9.5:1 | | Bore x stroke: | 54.0 x 54.4 mm (2.1 x 2.1 inches) | | Valves per cylinder: | 2 | | Fuel system: | Injection. Keihin | | Fuel control: | SOHC | | Ignition: | Digital DC-CDI | | Lubrication system: | Wet sump | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Clutch: | Wet, multidisk | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Perimeter, steel | | Rake (fork angle): | 26.0° | | Trail: | 94 mm (3.7 inches) | | Front suspension: | Inverted telescopic fork | | Front suspension travel: | 175 mm (6.9 inches) | | Rear suspension: | Uni-Track | | Rear suspension travel: | 180 mm (7.1 inches) | | Front tyre dimensions: | 100/80-14 | | Rear tyre dimensions: | 120/80-14 | | Front brakes: | Single disc | | Front brakes diameter: | 240 mm (9.4 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 190 mm (7.5 inches) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 114.0 kg (251.3 pounds) | | Seat height: | 805 mm (31.7 inches) If adjustable, lowest setting. | | Overall height: | 1,060 mm (41.7 inches) | | Overall length: | 1,980 mm (78.0 inches) | | Overall width: | 770 mm (30.3 inches) | | Ground clearance: | 230 mm (9.1 inches) | | Wheelbase: | 1,255 mm (49.4 inches) | | Fuel capacity: | 7.00 litres (1.85 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Further information |
|---|
