| Hyosung's profilation of this bike |
| An affordable road legal quad that offers a smooth power delivery and a fully adjustable suspension to give maximum traction. |
| General information |
|---|

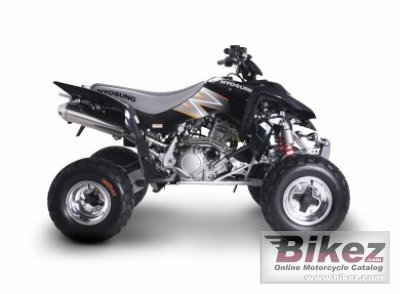

| Model: | Hyosung Rapier 450 Quad |
| Year: | 2011 |
| Category: | ATV |
| Rating: | 75.2 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 448.80 ccm (27.39 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 50.00 HP (36.5 kW)) @ 8500 RPM |
| Torque: | 47.64 Nm (4.9 kgf-m or 35.1 ft.lbs) @ 7000 RPM |
| Compression: | 12.0:1 |
| Bore x stroke: | 96.0 x 62.0 mm (3.8 x 2.4 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system: | Semi dry sump |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, Multiplate |
| Driveline: | Chain 520, With reverse. |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent double A-arm, |
| Rear suspension: | Aluminum alloy swing arm, |
| Front tyre: | 175/75-10 |
| Rear tyre: | 255/55-9 |
| Front brakes: | Double disc |
| Front brakes diameter: | 170 mm (6.7 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Overall height: | 1,155 mm (45.5 inches) |
| Overall length: | 1,835 mm (72.2 inches) |
| Overall width: | 1,170 mm (46.1 inches) |
| Ground clearance: | 260 mm (10.2 inches) |
| Wheelbase: | 1,250 mm (49.2 inches) |
| Fuel capacity: | 11.00 litres (2.91 gallons) |
| Other specifications |
|---|
| Color options: | Red/black |
| Starter: | Electric |
| Factory warranty: | 24 months |
