12 Husqvarna SMS630 specificationsHusqvarna SMS630 2012

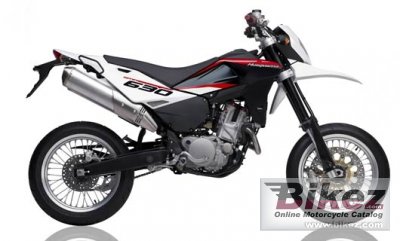

2012 Husqvarna SMS630 photo
Picture credits - Husqvarna. Click to submit more pictures.
Show more 2012 Husqvarna SMS630 images
2012 Husqvarna SMS630

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Husqvarna's profilation of this bike
The bodywork is all new, giving the bike a more streamlined and aggressive look. The seat, fuel tank, side panels, air ducts and mudguards at the front and rear all have a new design. The seat has new dual density padding to ensure greater comfort for rider and passenger even on longer routes.

General information
Model:Husqvarna SMS630
Year:2012
Category:Super motard
Rating:64.2 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:600.00 ccm (36.61 cubic inches)
Engine type:Single cylinder, four-stroke
Compression:12.4:1
Bore x stroke:100.0 x 76.4 mm (3.9 x 3.0 inches)
Fuel system:Injection. Mikuni Digital Fuel Injection
Fuel control:DOHC
Ignition:Electronic, inductive discharge, with adjustable advance
Lubrication system:Wet sump with oil pump and cartridge filter
Cooling system:Liquid
Transmission type,
final drive:
Chain
Clutch:Wet, multi-plate type, hydraulic control
Driveline:6 speed constant mesh
Chassis, suspension, brakes and wheels
Frame type:Steel single tube cradle; rear frame in light alloy
Front suspension:Marzocchi USD telescopic hydraulic fork with advanced axle, rebound stroke adjustment
Front suspension travel:250 mm (9.8 inches)
Rear suspension:Sachs Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment. Compression and rebound adjustment (compression stroke - double adjustment)
Rear suspension travel:290 mm (11.4 inches)
Front tyre dimensions:120/70-17
Rear tyre dimensions:150/60-17
Front brakes:Single disc
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc
Rear brakes diameter:220 mm (8.7 inches)
Physical measures and capacities
Dry weight:151.0 kg (332.9 pounds)
Seat height:910 mm (35.8 inches) If adjustable, lowest setting.
Overall height:1,190 mm (46.9 inches)
Overall length:2,170 mm (85.4 inches)
Overall width:840 mm (33.1 inches)
Ground clearance:240 mm (9.4 inches)
Wheelbase:1,495 mm (58.9 inches)
Fuel capacity:12.00 litres (3.17 gallons)
Other specifications
Starter:Electric
Instruments:Digital dash
Factory warranty:2 Years
Color options:White, Racing Black/White/Red
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 12 Husqvarna SMS630 discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Free motorcycle classifieds

Click here to sell a used 2012 Husqvarna SMS630 or advertise any other MC for sale. You can list all available Husqvarna SMS630 bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world.

You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.


Rating sample for this Husqvarna bike
Engine performance for the 2012 Husqvarna SMS630:


(62.0 out of 100)

Click here for complete rating. You can also compare bikes.
