| Honda's profilation of this bike |
| It all starts in the engine room, where the XR´s potent, Baja-bred 644cc OHC powerplant uses Honda´s patented Radial Four-Valve Combustion Chamber (RFVC) to put out huge torque and power. |
| General information |
|---|

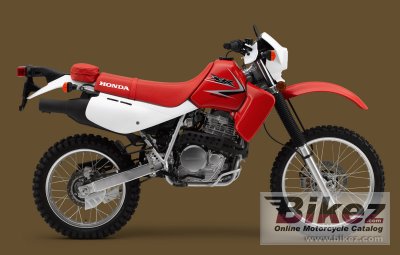

| Model: | Honda XR650L | | Year: | 2011 | | Category: | Enduro / offroad | | Rating: | 75.9 out of 100. Show full rating and compare with other bikes | | Price as new (MSRP): | US$ 5399. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 644.00 ccm (39.30 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Torque: | 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) | | Compression: | 8.3:1 | | Bore x stroke: | 100.0 x 82.0 mm (3.9 x 3.2 inches) | | Fuel system: | Carburettor. 42.5mm diaphragm-type CV carburetor | | Fuel control: | SOHC | | Ignition: | Solid-state CD with electronic advance | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Driveline: | #520 O-ring-sealed chain; 15T/45T | | Emission details: | Meets current CARB and EPA standards. California version differs slightly due to emissions equipment. | | Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 27.0° | | Trail: | 102 mm (4.0 inches) | | Front suspension: | 43mm air-adjustable leading-axle Showa cartridge fork with 16-position compression-damping adjustability | | Front suspension travel: | 295 mm (11.6 inches) | | Rear suspension: | Pro-link Showa single-shock with spring-preload, 20-position compression- and 20-position rebound-damping adjustability | | Rear suspension travel: | 279 mm (11.0 inches) | | Front tyre dimensions: | 110/21-17 | | Rear tyre dimensions: | 130/18-17 | | Front brakes: | Double disc | | Rear brakes: | Single disc | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 156.9 kg (346.0 pounds) | | Seat height: | 940 mm (37.0 inches) If adjustable, lowest setting. | | Ground clearance: | 330 mm (13.0 inches) | | Wheelbase: | 1,455 mm (57.3 inches) | | Fuel capacity: | 10.60 litres (2.80 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Factory warranty: | One year transferable, unlimited mileage limited warranty | | Color options: | Red | | Comments: | Model ID: XR650L | | Further information |
|---|
