| General information |
|---|

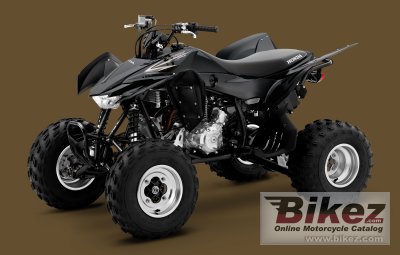

| Model: | Honda TRX400X |
| Year: | 2010 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 6299. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 397.00 ccm (24.22 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 12.0:1 |
| Bore x stroke: | 85.0 x 70.0 mm (3.3 x 2.8 inches) |
| Ignition: | CD with electronic advance |
| Cooling system: | Air |
| Gearbox: | 5-speed |
| Clutch: | Manual |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent double-wishbone with Showa shocks, five-position spring preload adjustability |
| Front wheel travel: | 208 mm (8.2 inches) |
| Rear suspension: | Pro-Link fully adjustable single Showa shock |
| Rear wheel travel: | 231 mm (9.1 inches) |
| Front tyre: | 22/7-10 |
| Rear tyre: | 20/10-9 |
| Front brakes: | Double disc |
| Front brakes diameter: | 174 mm (6.9 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 185.1 kg (408.0 pounds) |
| Seat height: | 836 mm (32.9 inches) If adjustable, lowest setting. |
| Overall height: | 1,118 mm (44.0 inches) |
| Overall length: | 1,821 mm (71.7 inches) |
| Overall width: | 1,156 mm (45.5 inches) |
| Ground clearance: | 104 mm (4.1 inches) |
| Wheelbase: | 1,217 mm (47.9 inches) |
| Fuel capacity: | 9.84 litres (2.60 gallons) |
| Other specifications |
|---|
| Color options: | Black/White, Red/Black, Black/Black |
| Starter: | Electric |
| Comments: | Model ID: TRX400X |
