| General information |
|---|

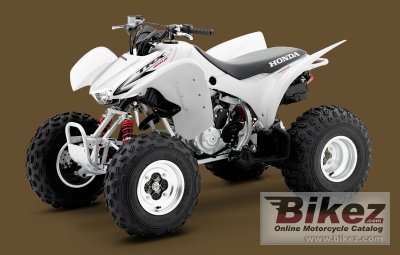

| Model: | Honda TRX300X |
| Year: | 2010 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 5299. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 282.00 ccm (17.21 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 12.0:1 |
| Bore x stroke: | 74.0 x 65.5 mm (2.9 x 2.6 inches) |
| Fuel system: | Carburettor. 32mm piston-valve with accelerator pump carburetor |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | CD with electronic advance |
| Cooling system: | Air |
| Gearbox: | 5-speed |
| Clutch: | Manual |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent double-wishbone with dual hydraulic shocks |
| Front wheel travel: | 180 mm (7.1 inches) |
| Rear suspension: | Swingarm with single shock |
| Rear wheel travel: | 201 mm (7.9 inches) |
| Front tyre: | 22/7-10 |
| Rear tyre: | 22/10-9 |
| Front brakes: | Double disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 176.0 kg (388.0 pounds) |
| Seat height: | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height: | 1,062 mm (41.8 inches) |
| Overall length: | 1,720 mm (67.7 inches) |
| Overall width: | 1,105 mm (43.5 inches) |
| Ground clearance: | 117 mm (4.6 inches) |
| Wheelbase: | 1,143 mm (45.0 inches) |
| Fuel capacity: | 8.32 litres (2.20 gallons) |
| Reserve fuel capacity: | 1.89 litres (0.50 gallons) |
| Other specifications |
|---|
| Color options: | Red, White |
| Starter: | Electric |
| Comments: | Model ID: TRX300X |
