09 Honda TRX300X specificationsHonda TRX300X 2009

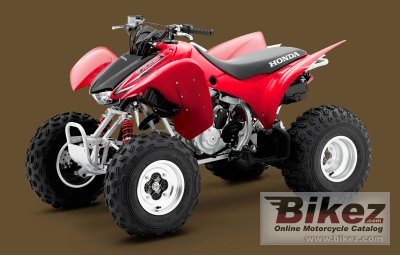

2009 Honda TRX300X photo
Picture credits - Honda. Click to submit more pictures.
   Show big 2009 Honda TRX300X imageShow more 2009 Honda TRX300X images
2009 Honda TRX300X

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Honda's profilation of this bike
The TRX300X is endowed with a 282cc Honda SOHC engine, push-button electric start, a race-style chain final-drive system, a solid five-speed-with-reverse transmission and a double-wishbone front suspension.

General information
Model:Honda TRX300X
Year:2009
Category:Sport
Rating:69.5 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 5049. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:282.00 ccm (17.21 cubic inches)
Engine type:Single cylinder, four-stroke
Compression:12.0:1
Bore x stroke:74.0 x 65.5 mm (2.9 x 2.6 inches)
Fuel system:Carburettor. 32mm piston-valve with accelerator pump carburetor
Fuel control:SOHC
Ignition:CD with electronic advance
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Chain
Clutch:Manual
Chassis, suspension, brakes and wheels
Front suspension:Independent double-wishbone with dual hydraulic shocks
Front suspension travel:180 mm (7.1 inches)
Rear suspension:Swingarm with single shock
Rear suspension travel:201 mm (7.9 inches)
Front tyre dimensions:22/7-10
Rear tyre dimensions:22/10-10
Front brakes:Double disc
Rear brakes:Single disc
Physical measures and capacities
Weight incl. oil, gas, etc:176.9 kg (390.0 pounds)
Seat height:775 mm (30.5 inches) If adjustable, lowest setting.
Overall height:1,062 mm (41.8 inches)
Overall length:1,720 mm (67.7 inches)
Overall width:1,105 mm (43.5 inches)
Ground clearance:117 mm (4.6 inches)
Wheelbase:1,143 mm (45.0 inches)
Fuel capacity:8.32 litres (2.20 gallons)
Other specifications
Starter:Electric
Color options:White, Red
Comments:Model ID: TRX300X
Further information
Parts and accessories Our partner CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners.
Ask questionsJoin the 09 Honda TRX300X discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Sell or buy used bikes?

Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2009 Honda TRX300X or advertise any other MC for sale. You can list all 2009 Honda TRX300X available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes.

Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.


Rating sample for this Honda bike
Reliability for the 2009 Honda TRX300X:


(59.3 out of 100)

Click here for complete rating. You can also compare bikes.
