| General information |
|---|

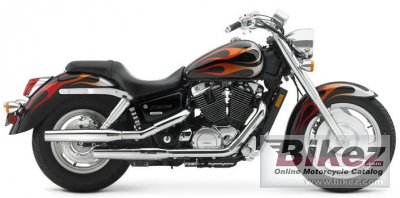

| Model: | Honda Shadow Sabre |
| Year: | 2005 |
| Category: | Custom / cruiser |
| Rating: | 77.4 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 8299. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1099.00 ccm (67.06 cubic inches) |
| Engine type: | V2, four-stroke |
| Compression: | 8.0:1 |
| Bore x stroke: | 87.5 x 91.4 mm (3.4 x 3.6 inches) |
| Fuel system: | Carburettor. Two 36mm CV |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | Digital, two spark plugs per cylinder |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Front Suspension |
| Rake (fork angle): | 32.7° |
| Trail: | 161 mm (6.3 inches) |
| Front suspension: | 41mm fork |
| Front wheel travel: | 119 mm (4.7 inches) |
| Rear suspension: | Dual shocks with five-position spring-preload adjustability |
| Rear wheel travel: | 99 mm (3.9 inches) |
| Front tyre: | 120/90-18 |
| Rear tyre: | 170/80-15 |
| Front brakes: | Single disc. 2-piston calipers. |
| Front brakes diameter: | 316 mm (12.4 inches) |
| Rear brakes: | Single disc. 1-piston calipers. |
| Rear brakes diameter: | 276 mm (10.9 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 259.9 kg (573.0 pounds) |
| Seat height: | 691 mm (27.2 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,641 mm (64.6 inches) |
| Fuel capacity: | 15.89 litres (4.20 gallons) |
| Other specifications |
|---|
| Color options: | Black, Black/Flame |
| Starter: | Electric |
| Comments: | Model ID: VT1100C2 |
