| Honda's profilation of this bike |

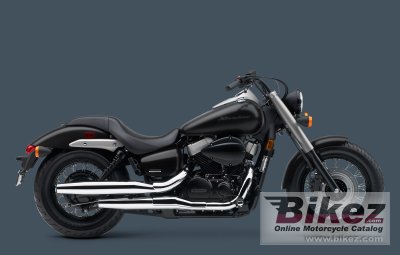

| The first time you lay eyes on the Shadow Phantom, it’s impossible to keep yourself from staring. Gawking, really. And wishing you had one in your garage. After all, this is the most unique Shadow we’ve ever made, an utterly stunning head-turner with its blacked-out 745cc V-twin engine and black rims sporting matte silver highlights, bobbed fenders, spoke wheels, and beefy front forks. |
| General information |
|---|
| Model: | Honda Shadow Phantom | | Year: | 2013 | | Category: | Custom / cruiser | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 23990. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 745.00 ccm (45.46 cubic inches) | | Engine type: | V2, four-stroke | | Engine details: | 52 degrees V-twin | | Compression: | 9.6:1 | | Bore x stroke: | 79.0 x 76.0 mm (3.1 x 3.0 inches) | | Valves per cylinder: | 3 | | Fuel system: | Injection. PGM-FI with automatic enrichment circuit, one 34mm throttle body | | Fuel control: | SOHC | | Ignition: | Digital with 3-D mapping, two spark plugs per cylinder | | Cooling system: | Liquid | | Gearbox: | 5-speed | Transmission type,
final drive: | Shaft drive (cardan) | | Fuel consumption: | 4.20 litres/100 km (23.8 km/l or 56.00 mpg) | | Greenhouse gases: | 97.4 CO2 g/km. (CO2 - Carbon dioxide emission) | | Emission details: | Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment. | | Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 34.0° | | Trail: | 161 mm (6.3 inches) | | Front suspension: | 41mm fork | | Front suspension travel: | 117 mm (4.6 inches) | | Rear suspension: | Dual shocks with five-position spring-preload adjustability | | Rear suspension travel: | 89 mm (3.5 inches) | | Front tyre dimensions: | 120/90-17 | | Rear tyre dimensions: | 160/80-15 | | Front brakes: | Double disc. Two-piston calipers. | | Front brakes diameter: | 296 mm (11.7 inches) | | Rear brakes: | Expanding brake (drum brake) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 249.0 kg (549.0 pounds) | | Seat height: | 655 mm (25.8 inches) If adjustable, lowest setting. | | Wheelbase: | 1,641 mm (64.6 inches) | | Fuel capacity: | 14.00 litres (3.70 gallons) | | Reserve fuel capacity: | 3.41 litres (0.90 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Factory warranty: | One year. Unlimited milage. Transferable. | | Color options: | Matte Black Metallic | | Comments: | Model ID: VT750C2B | | Further information |
|---|
