| Honda's profilation of this bike |
| Smooth, maintenance-free shaft final drive merely makes it that much better. And then, of course, there’s the look—short, sporty fenders, all-black frame, and a raked-out fork that screams, “You want some of this¿” |
| General information |
|---|

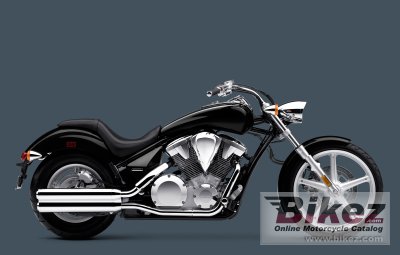

| Model: | Honda Sabre ABS | | Year: | 2010 | | Category: | Custom / cruiser | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 12799. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 1312.00 ccm (80.06 cubic inches) | | Engine type: | V2, four-stroke | | Compression: | 9.2:1 | | Bore x stroke: | 89.5 x 104.3 mm (3.5 x 4.1 inches) | | Valves per cylinder: | 3 | | Fuel system: | Injection. PGM-FI with automatic enrichment circuit, one 38mm throttle body | | Fuel control: | SOHC | | Ignition: | Digital with 3-D mapping, two spark plugs per cylinder | | Cooling system: | Liquid | | Gearbox: | 5-speed | Transmission type,
final drive: | Shaft drive (cardan) | | Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 33.0° | | Trail: | 118 mm (4.6 inches) | | Front suspension: | 41mm fork | | Front suspension travel: | 102 mm (4.0 inches) | | Rear suspension: | Single shock | | Rear suspension travel: | 99 mm (3.9 inches) | | Front tyre dimensions: | 90/90-21 | | Rear tyre dimensions: | 170/80-15 | | Front brakes: | Double disc. ABS | | Front brakes diameter: | 336 mm (13.2 inches) | | Rear brakes: | Single disc. AS | | Rear brakes diameter: | 296 mm (11.7 inches) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 298.9 kg (659.0 pounds) | | Seat height: | 683 mm (26.9 inches) If adjustable, lowest setting. | | Wheelbase: | 1,778 mm (70.0 inches) | | Fuel capacity: | 16.65 litres (4.40 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Black | | Comments: | Model ID: VT1300CSA | | Further information |
|---|
| Parts and accessories | Our partner CMSNL
ships low cost OEM motorcycle parts to
Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany,
Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro,
The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland,
Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners. |
| Ask questions | Join the 10 Honda Sabre ABS discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
