| General information |
|---|

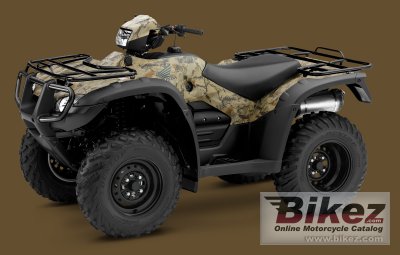

| Model: | Honda FourTrax Foreman 4x4 |
| Year: | 2010 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 475.00 ccm (28.98 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 8.5:1 |
| Bore x stroke: | 92.0 x 71.5 mm (3.6 x 2.8 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Overhead Valves (OHV) |
| Cooling system: | Air |
| Gearbox: | 5-speed |
| Clutch: | Automatic |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent double-wishbone |
| Front wheel travel: | 170 mm (6.7 inches) |
| Rear suspension: | Swingarm with dual shocks |
| Rear wheel travel: | 170 mm (6.7 inches) |
| Front tyre: | 25/8-12 |
| Rear tyre: | 25/10-12 |
| Front brakes: | Double disc |
| Front brakes diameter: | 180 mm (7.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 180 mm (7.1 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 281.2 kg (620.0 pounds) |
| Seat height: | 861 mm (33.9 inches) If adjustable, lowest setting. |
| Overall height: | 1,181 mm (46.5 inches) |
| Overall length: | 2,108 mm (83.0 inches) |
| Overall width: | 1,189 mm (46.8 inches) |
| Ground clearance: | 191 mm (7.5 inches) |
| Wheelbase: | 1,288 mm (50.7 inches) |
| Fuel capacity: | 15.51 litres (4.10 gallons) |
| Other specifications |
|---|
| Color options: | Red, Olive, Black, Camo |
| Starter: | Electric |
| Comments: | Model ID: TRX500FM |
