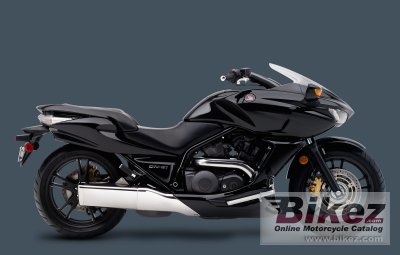

Honda DN-01 20102010 Honda DN-01 specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| It´s like nothing you´ve ever seen on two wheels. And for good reason: Honda´s stunning new DN-01 is in a class of its own—the world´s first crossover bike. Its styling and seating position alone set it completely apart, showing influence from the world of our sportbikes, sport touring machines, and cruisers. |
| General information | |
|---|---|
| Motorcycle name | Honda DN-01 |
| Year | 2010 |
| Category | Allround |
| Price as new | US$ 15599. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 680.0 ccm (41.49 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | 52-degree V-twin |
| Power | 43.3 HP (31.6 kW)) @ 7300 RPM |
| Top speed | 182.0 km/h (113.1 mph) |
| Compression | 10.0:1 |
| Bore x stroke | 81.0 x 66.0 mm (3.2 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. PGM-FI with automatic enrichment circuit, 40mm throttle bodies and 12-hole injectors |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 28.5° |
| Trail | 114 mm (4.5 inches) |
| Front suspension | 41mm telescopic fork |
| Front wheel travel | 107 mm (4.2 inches) |
| Rear suspension | Pro Arm single-side swingarm with single shock, seven-position spring preload adjustability; |
| Rear wheel travel | 119 mm (4.7 inches) |
| Front tire | 130/70-ZR17 |
| Rear tire | 190/50-ZR17 |
| Front brakes | Double disc. ABS and CBS with dual full-floating discs and three-piston calipers |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc. ABS and CBS with single disc and three-piston caliper |
| Diameter | 276 mm (10.9 inches) |
| Physical measures and capacities | |
| Dry weight | 269.0 kg (593.0 pounds) |
| Weight incl. oil, gas, etc | 273.0 kg (601.9 pounds) |
| Power/weight ratio | 0.1610 HP/kg |
| Seat height | 691 mm (27.2 inches) If adjustable, lowest setting. |
| Overall height | 1020 mm (40.2 inches) |
| Overall length | 1830 mm (72.0 inches) |
| Wheelbase | 1605 mm (63.2 inches) |
| Fuel capacity | 15.14 litres (4.00 US gallons) |
| Reserve fuel capacity | 3.02 litres (0.80 US gallons) |
| Oil capacity | 4.00 litres (4.23 US quarts) |
| Other specifications | |
| Color options | Candy Dark Red, Black |
| Starter | Electric |
| Comments | Model ID: NSA700A. |
