| General information |
|---|

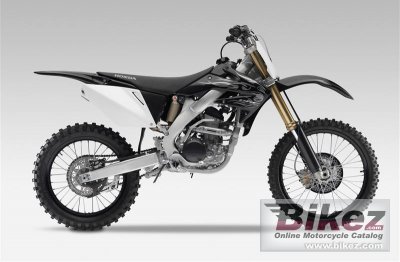

| Model: | Honda CRF250F |
| Year: | 2009 |
| Category: | Cross / motocross |
| Rating: | 58 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 249.00 ccm (15.19 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Compression: | 12.9:1 |
| Bore x stroke: | 78.0 x 52.2 mm (3.1 x 2.1 inches) |
| Fuel system: | Carburettor. 40mm Keihin flat-slide |
| Ignition: | CD |
| Starter: | Electric |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type final drive: | Chain |
| Physical measures |
|---|
| Weight incl. oil, gas, etc: | 103.0 kg (227.0 pounds) |
| Seat height: | 965 mm (38.0 inches) If adjustable, lowest setting. |
| Ground clearance: | 361 mm (14.2 inches) |
| Wheelbase: | 1,478 mm (58.2 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 27.9° |
| Trail: | 125 mm (4.9 inches) |
| Front suspension: | 47.0mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability |
| Front suspension travel: | 315 mm (12.4 inches) |
| Rear suspension: | Pro-Link Showa single-shock with spring preload, 13-position [low-speed] and 3.5-turn [high-speed] compression damping and 17-position rebound damping adjustability |
| Rear suspension travel: | 315 mm (12.4 inches) |
| Front tyre dimensions: | 80/18-21 |
| Rear tyre dimensions: | 100/90-19 |
| Front brakes: | Double disc |
| Rear brakes: | Single disc |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 7.19 litres (1.90 gallons) |
| Color options: | Red |
| Comments: | Model ID: CRF250R |
