12 Honda CRF230L specificationsHonda CRF230L 2012

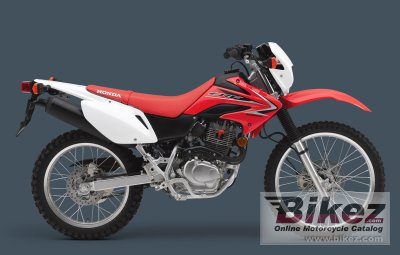

2012 Honda CRF230L photo
Picture credits - Honda. Click to submit more pictures.
   Show big 2012 Honda CRF230L image
2012 Honda CRF230L

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Honda's profilation of this bike
First and foremost, it´s a dirtbike that happens to be street-legal, so it has the goods—torquey 223cc single-cylinder engine, six-speed gearbox, lightweight chassis, Pro-Link® rear suspension, head- and taillights and turn signals—to take you anywhere, on-road or off. Add to that a low, confidence-inspiring seat height, no-fuss electric start and great gas mileage, and you´re looking at the perfect dual-sport machine for conquering your commute... or your favorite trail.

General information
Model:Honda CRF230L
Year:2012
Category:Enduro / offroad
Rating:73 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 4999. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:223.00 ccm (13.61 cubic inches)
Engine type:Single cylinder, four-stroke
Torque:65.50 Nm (6.7 kgf-m or 48.3 ft.lbs)
Compression:9.0:1
Bore x stroke:65.5 x 66.2 mm (2.6 x 2.6 inches)
Fuel system:Carburettor. 30mm CV carbureto
Fuel control:SOHC
Ignition:CD
Lubrication system:Dry sump
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Chain
Driveline:#520 O-ring-sealed chain
Emission details:Meets current CARB and EPA standards
Chassis, suspension, brakes and wheels
Rake (fork angle):26.8°
Trail:103 mm (4.1 inches)
Front suspension:37mm leading-axle Showa fork
Front suspension travel:229 mm (9.0 inches)
Rear suspension:Pro-link Showa single shock with adjustable spring preload adjustability
Rear suspension travel:160 mm (6.3 inches)
Front tyre dimensions:2.75-21
Rear tyre dimensions:120/80-18
Front brakes:Single disc. Twin-piston caliper
Front brakes diameter:240 mm (9.4 inches)
Rear brakes:Single disc
Rear brakes diameter:220 mm (8.7 inches)
Physical measures and capacities
Weight incl. oil, gas, etc:121.1 kg (267.0 pounds)
Seat height:810 mm (31.9 inches) If adjustable, lowest setting.
Ground clearance:241 mm (9.5 inches)
Wheelbase:1,340 mm (52.8 inches)
Fuel capacity:8.71 litres (2.30 gallons)
Reserve fuel capacity:2.65 litres (0.70 gallons)
Other specifications
Color options:Red
Comments:Model ID: CRF230L
Further information
Parts and accessories Our partner CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners.
Ask questionsJoin the 12 Honda CRF230L discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Free motorcycle classifieds

Click here to sell a used 2012 Honda CRF230L or advertise any other MC for sale. You can list all available Honda CRF230L bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world.

You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.


Rating sample for this Honda bike
Reliability for the 2012 Honda CRF230L:


(86.5 out of 100)

Click here for complete rating. You can also compare bikes.
