| General information |
|---|

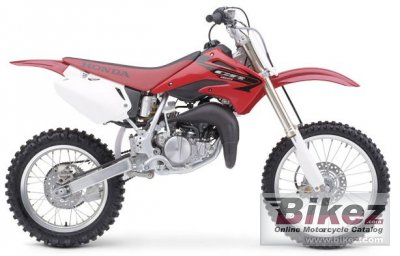

| Model: | Honda CR 85 R Expert |
| Year: | 2005 |
| Category: | Cross / motocross |
| Rating: | 66.6 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 84.70 ccm (5.17 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 2 |
| Compression: | 8.4:1 |
| Bore x stroke: | 47.5 x 47.8 mm (1.9 x 1.9 inches) |
| Fuel system: | Carburettor. 38.0mm Mikuni TMX with throttle position sensor (TPS) |
| Ignition: | CD with electronic advance |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| More details | Consult a Honda repair manual. |
| Physical measures |
|---|
| Dry weight: | 65.8 kg (145.0 pounds) |
| Seat height: | 864 mm (34.0 inches) If adjustable, lowest setting. |
| Ground clearance: | 353 mm (13.9 inches) |
| Wheelbase: | 1,247 mm (49.1 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 27.3° |
| Trail: | 92 mm (3.6 inches) |
| Front suspension: | 37mm fully adjustable leading-axle inverted Showa cartridge fork |
| Front suspension travel: | 274 mm (10.8 inches) |
| Rear suspension: | Pro-Link fully adjustable Showa single-shock |
| Rear suspension travel: | 292 mm (11.5 inches) |
| Front tyre dimensions: | 70/70-19 |
| Rear tyre dimensions: | 90/90-16 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 5.10 litres (1.35 gallons) |
| Color options: | Red |
| Comments: | Model ID: CR85RB |
