05 Honda CBR 125 R specificationsHonda CBR 125 R 2005

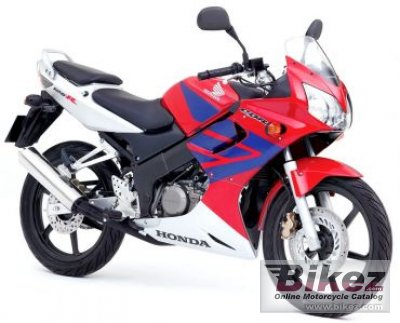

2005 Honda CBR 125 R photo
Picture submitted by anonymous user.. Click to submit more pictures.
Show more 2005 Honda CBR 125 R images
2005 Honda CBR 125 R

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



General information
Model:Honda CBR 125 R
Year:2005
Category:Sport
Rating:68.2 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 4503. Euro 3082. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:125.00 ccm (7.63 cubic inches)
Engine type:Single cylinder, four-stroke
Power:13.30 HP (9.7 kW)) @ 10000 RPM
Torque:10.10 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 8000 RPM
Top speed:120.0 km/h (74.6 mph)
Max RPM:10750
Compression:11.0:1
Bore x stroke:58.0 x 47.2 mm (2.3 x 1.9 inches)
Valves per cylinder:2
Fuel system:Carburettor. VK-Type
Fuel control:SOHC
Ignition:Capacitor Discharge (CDI)
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Wet, multiplate with coil springs
Fuel consumption:2.94 litres/100 km (34.0 km/l or 80.01 mpg)
Greenhouse gases:68.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis, suspension, brakes and wheels
Frame type:Diamond, steel twin-spar
Rake (fork angle):25.0
Trail:88 mm (3.5 inches)
Front suspension:31mm telescopic fork
Front suspension travel:109 mm (4.3 inches)
Rear suspension:Monoshock damper
Rear suspension travel:120 mm (4.7 inches)
Front tyre dimensions:80/90-17
Rear tyre dimensions:110/80-17
Front brakes:Single disc. 2-piston calipers
Front brakes diameter:276 mm (10.9 inches)
Rear brakes:Single disc. 1-piston caliper
Rear brakes diameter:220 mm (8.7 inches)
Physical measures and capacities
Dry weight:115.0 kg (253.5 pounds)
Power/weight ratio:0.1157 HP/kg
Seat height:776 mm (30.6 inches) If adjustable, lowest setting.
Overall height:1,070 mm (42.1 inches)
Overall length:1,920 mm (75.6 inches)
Overall width:675 mm (26.6 inches)
Ground clearance:172 mm (6.8 inches)
Wheelbase:1,294 mm (50.9 inches)
Fuel capacity:10.00 litres (2.64 gallons)
Other specifications
Starter:Electric
Color options:Red and Black, Repsol Replica, Black and Silver, Blue
Further information
Parts and accessories Our partner CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners.
Ask questionsJoin the 05 Honda CBR 125 R discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2005 Honda CBR 125 R discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.


Rating sample for this Honda bike
Touring capabilities for the 2005 Honda CBR 125 R:


(67.9 out of 100)

Click here for complete rating. You can also compare bikes.
