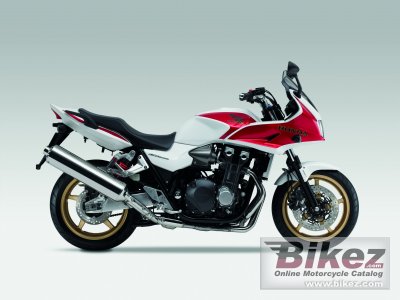

Honda CB1300SA 20102010 Honda CB1300SA specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Honda CB1300SA |
| Model year | 2010 |
| Category | Sport |
| Rating | 3.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1284.0 ccm (78.35 cubic inches) |
| Engine type | In-line four, four-stroke |
| Power output | 112.7 HP (82.2 kW)) @ 7750 RPM |
| Torque | 116.0 Nm (11.8 kgf-m or 85.6 ft.lbs) @ 6000 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 78.0 x 67.2 mm (3.1 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. PGM-FI |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate with coil springs |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 25.0° |
| Trail | 99 mm (3.9 inches) |
| Front suspension | Cartridge type telescopic fork with adjustable compression and rebound |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Dual conventional dampers with 5-step adjustable spring preload |
| Rear wheel travel | 115 mm (4.5 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc |
| Diameter | 256 mm (10.1 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 271.0 kg (597.5 pounds) |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height | 1208 mm (47.6 inches) |
| Overall length | 2220 mm (87.4 inches) |
| Overall width | 795 mm (31.3 inches) |
| Ground clearance | 125 mm (4.9 inches) |
| Wheelbase | 1510 mm (59.4 inches) |
| Fuel capacity | 21.00 litres (5.55 US gallons) |
| Oil capacity | 3.80 litres (4.02 US quarts) |
| Other specifications | |
| Color options | Black, white/red |
| Starter | Electric |
